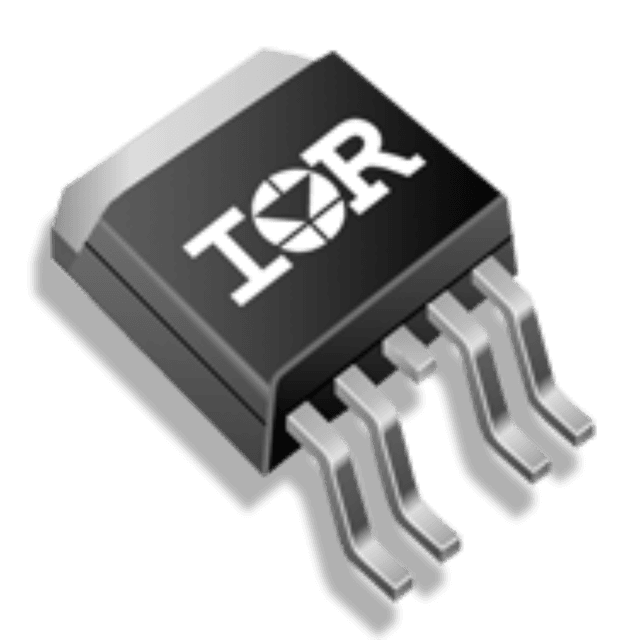

INFINEON AUIPS7081R
INFINEON AUIPS7081R

INFINEON AUIPS7081R

Manufacturer No:

AUIPS7081R

Manufacturer:

INFINEON

Package:

TO-252-5, DPak (4 Leads + Tab), TO-252AD

Description:

N-Channel PMIC Automotive, AEC-Q100 Series IPS7081PBF 14V TO-252-5, DPak (4 Leads + Tab), TO-252AD

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AUIPS7081R information

INFINEON AUIPS7081R technical specifications, attributes, parameters and parts with similar specifications to INFINEON AUIPS7081R.

  • Type
  • Parameter
  • Factory Lead Time
  • 23 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • TO-252-5, DPak (4 Leads + Tab), TO-252AD
  • Surface Mount
  • YES
  • Operating Temperature
  • -40°C~150°C TJ
  • Packaging
  • Tube
  • Series
  • Automotive, AEC-Q100
  • Published
  • 2014
  • Feature
  • Auto Restart
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 4
  • ECCN Code
  • EAR99
  • Subcategory
  • Peripheral Drivers
  • Terminal Position
  • SINGLE
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Number of Functions
  • 1
  • Supply Voltage
  • 14V
  • Reach Compliance Code
  • compliant
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • IPS7081PBF
  • JESD-30 Code
  • R-PSSO-G4
  • Number of Outputs
  • 1
  • Output Type
  • N-Channel
  • Supply Voltage-Max (Vsup)
  • 35V
  • Supply Voltage-Min (Vsup)
  • 6V
  • Interface
  • On/Off
  • Current - Output (Max)
  • 2A
  • Output Configuration
  • High Side
  • Voltage - Supply (Vcc/Vdd)
  • Not Required
  • Input Type
  • Non-Inverting
  • Switch Type
  • General Purpose
  • Ratio - Input:Output
  • 1:1
  • Voltage - Load
  • 6V~35V
  • Driver Number of Bits
  • 1
  • Fault Protection
  • Current Limiting (Fixed), Open Load Detect, Over Temperature
  • Turn On Time
  • 45 µs
  • Rds On (Typ)
  • 55m ?
  • Turn Off Time
  • 50 µs
  • Built-in Protections
  • TRANSIENT; OVER CURRENT; THERMAL
  • Output Current Flow Direction
  • SINK
  • Length
  • 6.54mm
  • Height Seated (Max)
  • 2.39mm
  • Width
  • 6.095mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for INFINEON AUIPS7081R.

Datasheets:

Other Related Documents:

AUIPS7081R Overview


Tube is how it's packaged.The TO-252-5, DPak (4 Leads + Tab), TO-252AD package includes it.This lighting drivere has a mounting type of Surface Mount.There is a General Purpose switch type associated with it.It is recommended that the temperature be set to -40°C~150°C TJ for reliable operation.In this LED driver, there are no outputs available.A supply voltage of Not Required is required for it to operate.There is a maximum output voltage of N-Channel volts.In terms of features, the LED driving board has Auto Restart.It belongs to the family IPS7081PBF.The termination count is 4.As far as functions are concerned, the lighting driver has 1.This LED driver has a maximum output of 2AV.High efficiency is possible at 14V supply voltage.Electrical components such as this are included in the Automotive, AEC-Q100 series.A self-contained container with a capacity of Peripheral Drivers contains this lighting driver.In this case, Vsup (maximum supply voltage) is set to 35V.To maintain a normal operation, the supply voltage (Vsup) must be maintained above 6V.

AUIPS7081R Features


Supplied from 14V


AUIPS7081R Applications


There are a lot of Infineon Technologies
AUIPS7081R Power Switches ICs applications.


  • Notebook PC
  • Telecom and Network Systems
  • PC Card Hot Swap
  • Storage Drives
  • Portable/Handheld Devices
  • Wireless/Networking Cards
  • Low Voltage I/O System Power
  • Hard Disk Drives
  • Solid-State Drives
  • Hot Swap
