INFINEON AUIPS6011RTRL
Manufacturer No:
AUIPS6011RTRL
Manufacturer:
Package:

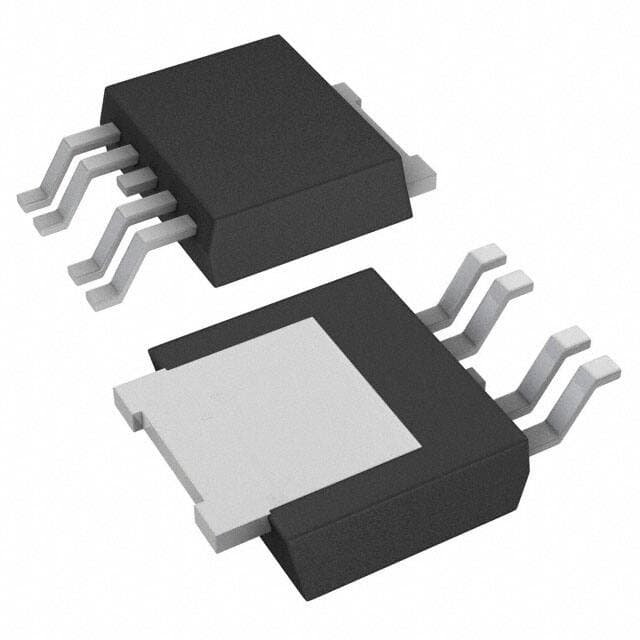

TO-252-5, DPak (4 Leads + Tab), TO-252AD
Description:
6/28V N-Channel PMIC Automotive, AEC-Q100 Series AUIPS6011R 5 Pin TO-252-5, DPak (4 Leads + Tab), TO-252AD
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
AUIPS6011RTRL information
INFINEON AUIPS6011RTRL technical specifications, attributes, parameters and parts with similar specifications to INFINEON AUIPS6011RTRL.
- Type
- Parameter
- Factory Lead Time
- 23 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- TO-252-5, DPak (4 Leads + Tab), TO-252AD
- Number of Pins
- 5
- Operating Temperature
- -40°C~150°C TJ
- Packaging
- Tape & Reel (TR)
- Series
- Automotive, AEC-Q100
- Published
- 2009
- Feature
- Auto Restart
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 5
- ECCN Code
- EAR99
- Resistance
- 14MOhm
- Subcategory
- Peripheral Drivers
- Max Power Dissipation
- 2.5W
- Terminal Position
- SINGLE
- Current Rating
- 60A
- Base Part Number
- AUIPS6011R
- Number of Outputs
- 1
- Output Type
- N-Channel
- Max Output Current
- 5.6A
- Power Supplies
- 6/28V
- Nominal Supply Current
- 5mA
- Output Configuration
- High Side
- Voltage - Supply (Vcc/Vdd)
- Not Required
- Input Type
- Non-Inverting
- Switch Type
- General Purpose
- Clamping Voltage
- 39V
- Rise Time
- 80ns
- Fall Time (Typ)
- 80 ns
- Ratio - Input:Output
- 1:1
- Voltage - Load
- 36V Max
- Driver Number of Bits
- 1
- Fault Protection
- Current Limiting (Fixed), Open Load Detect, Over Temperature
- Rds On (Typ)
- 11m ?
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for INFINEON AUIPS6011RTRL.
Other Related Documents:
ConflictMineralStatement:
AUIPS6011RTRL Overview
Tape & Reel (TR) is how it's packaged.The TO-252-5, DPak (4 Leads + Tab), TO-252AD package includes it.This lighting drivere has a mounting type of Surface Mount.There is a General Purpose switch type associated with it.It is recommended that the temperature be set to -40°C~150°C TJ for reliable operation.In this LED driver, there are no outputs available.A supply voltage of Not Required is required for it to operate.There is a maximum output voltage of N-Channel volts.In terms of features, the LED driving board has Auto Restart.It belongs to the family AUIPS6011R.The termination count is 5.The 5 pins are used to operate the LED driver.The maximum output current must drop to 5.6A to meet the operation criteria.This lighting driver is mounted in the way of Surface Mount.14MOhm resistance is present in the lighting driver.Electrical components such as this are included in the Automotive, AEC-Q100 series.A self-contained container with a capacity of Peripheral Drivers contains this lighting driver.A 6/28V power supply is used by the part.
AUIPS6011RTRL Features
Resistance of 14MOhm
AUIPS6011RTRL Applications
There are a lot of Infineon Technologies
AUIPS6011RTRL Power Switches ICs applications.
- Notebook PC
- Telecom and Network Systems
- PC Card Hot Swap
- Storage Drives
- Portable/Handheld Devices
- Wireless/Networking Cards
- Low Voltage I/O System Power
- Hard Disk Drives
- Solid-State Drives
- Hot Swap
