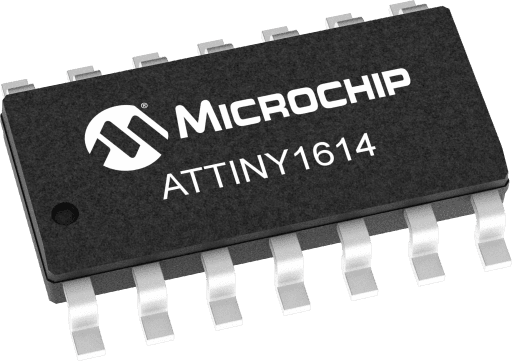

Microchip ATTINY1614-SSFR
Microchip ATTINY1614-SSFR

Microchip ATTINY1614-SSFR

Manufacturer No:

ATTINY1614-SSFR

Manufacturer:

Microchip

Package:

14-SOIC (0.154, 3.90mm Width)

Description:

Series of microcontrollers featuring the 8-bit AVR processor with low power including Event System, intelligent analog and advanced peripherals.

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATTINY1614-SSFR information

Microchip ATTINY1614-SSFR technical specifications, attributes, parameters and parts with similar specifications to Microchip ATTINY1614-SSFR.

  • Type
  • Parameter
  • Program Memory Size (KB)
  • 16
  • RAM
  • 2048
  • Data EEPROM (bytes)
  • 256
  • Pin Count
  • 14
  • Operation Voltage Max.(V)
  • 5.5
  • Operation Voltage Min.(V)
  • 1.8
  • ADC Resolution Max
  • 10
  • ADC Channels
  • 10
  • Zero Cross Detect
  • False
  • Number of Comparators
  • 3
  • SPI
  • 1
  • I2C
  • 1
  • Stand alone PWM
  • 4
  • Low Power
  • No
  • Numerically Controlled Oscillator (NCO)
  • 0
  • Data Signal Modulator (DSM)
  • 0

Download datasheets and manufacturer documentation for Microchip ATTINY1614-SSFR.

Supporting Collateral:

Application Notes:

Errata:

Data Sheets:

Reference Manual:

Brochures:

The ATtiny1614 is a microcontroller featuring the 8-bit AVR® processor with hardware multiplier, running at up to 20 MHz and with 16 KB Flash, 2 KB SRAM and 128B of EEPROM in a 14-pin package. The series uses the latest Core Independent Peripherals with low-power features, including Event System, intelligent analog and advanced peripherals. The integrated QTouch® peripheral touch controller supports capacitive touch interfaces with proximity sensing and a driven shield.

Functional Safety

This product is recommended for safety-critical applications targeting industrial and automotive products (IEC 61508 and ISO 26262). Necessary documentation, such as the FMEDA report and a Safety Manual, can be provided on request. MPLAB® X IDE and the MPLAB® XC8 compiler is available in a safety-certified version. Contact your local Microchip sales office or your distributor for more information.



  • Hardware multiplier
  • Three sleep modes:
  • Idle
  • Standby
  • Power Down
  • Event System
  • Watchdog Timer (WDT)
  • Power-On Reset (POR)
  • Brown-Out Detection (BOD)
  • Single pin programming and debugging interface (UPDI)
  • 10 Channel 10-bit ADC with Voltage Reference
  • 8-bit Digital to Analog Converter (DAC)
  • Comparators
  • Configurable Custom Logic (CCL)
  • 1x 12-bit Timers (TCD)
  • 2x 16-bit Timer (TCA / TCB)
  • Cyclical Redundancy Check (CRC/SCAN)
  • Peripheral Touch Controller (PTC)
  • 6 channels self-capacitance
  • 9 mutual-capacitance buttons supported
  • SPI / I2C / USART

    • User Guide
