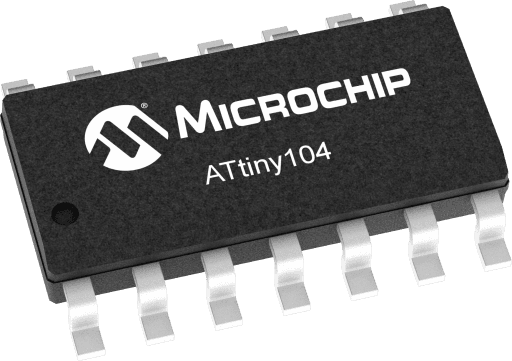

Microchip ATTINY104-SSNR

Manufacturer No:

ATTINY104-SSNR

Manufacturer:

Microchip

Package:

14-SOIC (0.154, 3.90mm Width)

Description:

ATtiny104

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATTINY104-SSNR information

Microchip ATTINY104-SSNR technical specifications, attributes, parameters and parts with similar specifications to Microchip ATTINY104-SSNR.

Type
Parameter

Program Memory Size (KB)
1

Data EEPROM (bytes)
0

Pin Count
14

Operation Voltage Max.(V)
5.5

Operation Voltage Min.(V)
1.8

ADC Resolution Max
10

ADC Channels
8

Zero Cross Detect
False

Number of Comparators
0

Stand alone PWM
2

Low Power
Yes

Numerically Controlled Oscillator (NCO)
0

Data Signal Modulator (DSM)
0

Download datasheets and manufacturer documentation for Microchip ATTINY104-SSNR.

The high-performance Microchip tinyAVR® picoPower® 8-bit RISC-based microcontroller (MCU) combines 1 KB in-system programmable Flash memory, 32B SRAM, 12 general purpose I/O lines, 16 general purpose working registers, one 16-bit timer/counter with two PWM channels, internal and external interrupts, an 8-channel 10-bit A/D converter, on-chip analog comparator, one full-duplex USART, programmable watchdog timer with internal oscillator, internally calibrated oscillator, 10-bytes unique ID (serial number), three calibrated internal voltage references (1.1V, 2.2V and 4.3V), and four software selectable power saving modes. A version with faster startup time is available under a dedicated part number. The device operates between 1.8-5.5 volts.

By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching one MIPS per MHz, balancing power consumption and processing speed.

The ATtiny104 device is a small, very versatile, low-cost, easy-to-use microcontroller suited to almost any application. It can be used for system monitoring, battery measurement, battery charging, voltage measurement, current measurement, interface to buttons, switches, drive of small motors, drive of one or more LEDs, and more. The integrated USART provides means for a wired or wireless interface, making it possible to make a powerful yet small and low-cost solution for any Internet of Things (IoT) end-node.
