ATSAMV70Q20B-CBT-Microchip-Price, Stock & Datasheet

The Microchip SAM V70 devices are a family of Automotive Flash microcontrollers based on the high-performance 32-bit ARM Cortex-M7 processor with a Double Precision Floating Point Unit (FPU). These devices operate at up to 300MHz and feature up to 1024 Kbytes of Flash, and up to 384 Kbytes of multi-port SRAM which is configurable Instruction and Data Tightly Couple Memories to leverage the advanced DSP capabilities of the core.

The SAM V70 series includes a HS USB Interface with integrated PHY, dual CAN-FD, QSPI, MediaLB, CMOS Imager interface, TDM/I2S (SSC,) multiple serial interfaces as well as on-board hardware cryptography including a TRNG, AES-256, and SHA-256 engines.

Supported by MPLAB X IDE and MPLAB Harmony.

ARM® Cortex®-M7 running up to 300MHz

16 Kbytes of ICache and 16 Kbytes of DCache with Error Code Correction (ECC)

Single- and double-precision HW Floating Point Unit (FPU)

Memory Protection Unit (MPU) with 16 zones

DSP Instructions, Thumb®-2 Instruction Set

Embedded Trace Module (ETM) with instruction trace stream, including Trace Port Interface Unit (TPIU)

1024 Kbytes embedded Flash with unique identifier and user signature for user-defined data

384 Kbytes embedded Multi-port SRAM

Tightly Coupled Memory (TCM) interface with four configurations (disabled, 2 x 32 Kbytes, 2 x 64 Kbytes, 2 x 128 Kbytes)

16 Kbytes ROM with embedded Bootloader routines (UART0, USB) and IAP routines

16-bit Static Memory Controller (SMC) with support for SRAM, PSRAM, LCD module, NOR and NAND Flash with on-the-fly scrambling

Embedded voltage regulator for single-supply operation

Power-on-Reset (POR), Brown-out Detector (BOD) and Dual Watchdog for safe operation

Quartz or ceramic resonator oscillators: 3 to 20 MHz main oscillator with failure detection, 12 MHz or 16 MHz needed for USB operations. Optional low-power 32.768 kHz for RTC or device clock

RTC with Gregorian calendar mode, waveform generation in low-power modes

RTC counter calibration circuitry compensates for 32.768 kHz crystal frequency variations

32-bit low-power Real-time Timer (RTT)

High-precision Main RC oscillator with 12 MHz default frequency for device startup. In-application trimming access for frequency adjustment. 8/12 MHz are factory-trimmed.

32.768 kHz crystal oscillator or Slow RC oscillator as source of low-power mode device clock (SLCK)

One 500 MHz PLL for system clock, one 480 MHz PLL for USB high-speed operations

Temperature Sensor

One dual-port 24-channel central DMA Controller (XDMAC)

Low-power Sleep, Wait and Backup modes, with typical power consumption down to 1.1 µA in Backup mode with RTC, RTT and wakeup logic enabled

Ultra-low-power RTC and RTT

1 Kbyte of backup RAM (BRAM) with dedicated regulator

USB 2.0 Device/Mini Host High-speed (USBHS) at 480 Mbps, 4-Kbyte FIFO, up to 10 bidirectional endpoints, dedicated DMA

12-bit ITU-R BT. 601/656 Image Sensor Interface (ISI)

Two Host Controller Area Networks (MCAN) with Flexible Data Rate (CAN-FD) with SRAM-based mailboxes, time- and event-triggered transmission

MediaLB® device with 3-wire mode, up to 1024 x Fs speed, supporting MOST25 and MOST50 networks

Three USARTs. USART0/1/2 support LIN mode, ISO7816, IrDA®, RS-485, SPI, Manchester and Modem modes; USART1 supports LON mode.

Five 2-wire UARTs with SleepWalking™ support

Three Two-Wire Interfaces (TWIHS) (I2C-compatible) with SleepWalking™ support

Quad I/O Serial Peripheral Interface (QSPI) interfacing up to 256 MB Flash and with eXecute-In-Place and on-the-fly scrambling

Two Serial Peripheral Interfaces (SPI)

One Serial Synchronous Controller (SSC) with I2S and TDM support

Two Inter-IC Sound Controllers (I2SC)

One High-speed Multimedia Card Interface (HSMCI) (SDIO/SD Card/e.MMC)

Four Three-Channel 16-bit Timer/Counters (TC) with Capture, Waveform, Compare and PWM modes, constant on time. Quadrature decoder logic and 2-bit Gray Up/Down Counter for stepper motor

Two 4-channel 16-bit PWMs with complementary outputs, Dead Time Generator and eight fault inputs per PWM for motor control, two external triggers to manage power factor correction (PFC), DC-DC and lighting control.

Two Analog Front-End Controllers (AFEC), each supporting up to 12 channels with differential input mode and programmable gain stage, allowing dual sample-and-hold at up to 1.7 Msps. Offset and gain error correction feature.

One 2-channel 12-bit 1 Msps-per-channel Digital-to-Analog Controller (DAC) with Differential and Over Sampling modes

One Analog Comparator Controller (ACC) with flexible input selection, selectable input hysteresis

True Random Number Generator (TRNG)

AES: 256-, 192-, 128-bit Key Algorithm, Compliant with FIPS PUB-197 Specifications

Integrity Check Monitor (ICM). Supports Secure Hash Algorithm SHA1, SHA224 and SHA256.

Up to 114 I/O lines with external interrupt capability (edge- or level-sensitivity), debouncing, glitch filtering and On-die Series Resistor Termination

Five Parallel Input/output Controllers (PIO)

Single supply voltage from 3.0V to 3.6V

Qualification AEC-Q100 grade 2 ([-40°C : +105°C] ambient temperature)

LQFP144, 144-lead LQFP, 20 x 20 mm, pitch 0.5 mm

TFBGA144, 144-ball TFBGA, 10 x 10 mm, pitch 0.8 mm

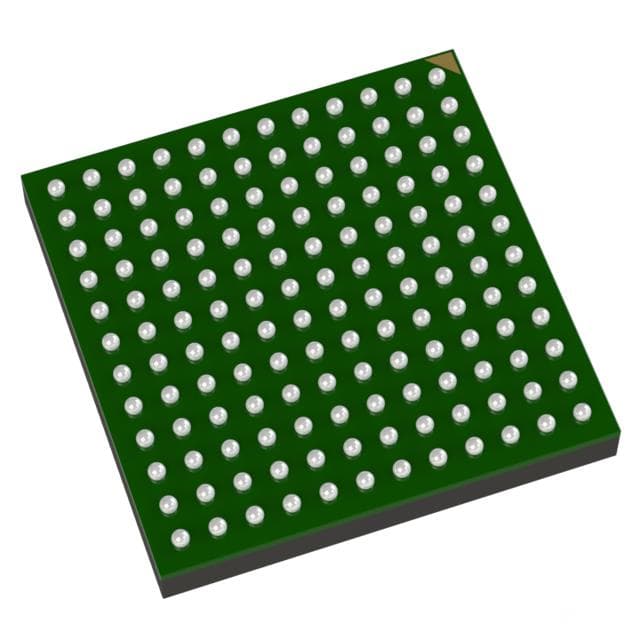

Microchip ATSAMV70Q20B-CBT

Manufacturer No:

ATSAMV70Q20B-CBT

Manufacturer:

Microchip

Package:

144-TFBGA

Description:

ATSAMV70Q20

In Stock :6903
