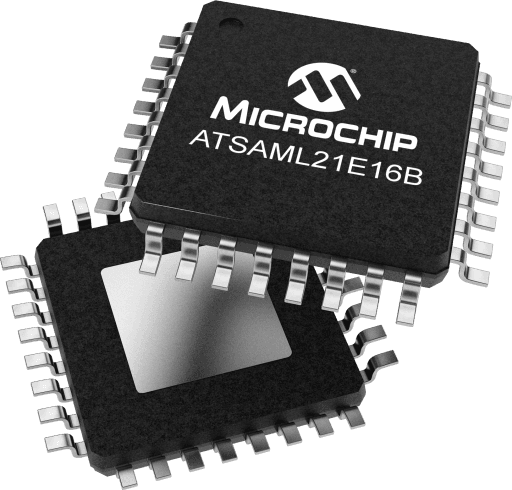

Microchip ATSAML21E16B-MUT
Microchip ATSAML21E16B-MUTMicrochip ATSAML21E16B-MUT

Microchip ATSAML21E16B-MUT

Manufacturer No:

ATSAML21E16B-MUT

Manufacturer:

Microchip

Package:

32-VFQFN Exposed Pad

Description:

ATSAML21E16B

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATSAML21E16B-MUT information

Microchip ATSAML21E16B-MUT technical specifications, attributes, parameters and parts with similar specifications to Microchip ATSAML21E16B-MUT.

  • Type
  • Parameter
  • Part Family
  • SAML21
  • CPU Type
  • Cortex-M0+
  • MaxSpeed (MHz)
  • 48
  • Program Memory Size (KB)
  • 64
  • SRAM (KB)
  • 12
  • Temp. Range Min.
  • -40
  • Temp. Range Max.
  • 105
  • Operation Voltage Min.(V)
  • 1.62
  • Operation Voltage Max.(V)
  • 3.63
  • SPI
  • 4
  • I2C
  • 4
  • UART
  • 4
  • QSPI
  • 0
  • Crypto Engine
  • Yes
  • Internal Oscillator
  • 32Khz ULP, 16Mhz
  • Pin Count
  • 32

Download datasheets and manufacturer documentation for Microchip ATSAML21E16B-MUT.

Tech Brief:

Legacy Collaterals:

Supporting Collateral:

Data Sheets:

Errata:

Application Notes:

Brochures:

User Guide:

The ultra-low-power ATSAML21 based Flash microcontroller (MCU) feature sophisticated power management technologies and consumes under 35 µA/MHz in active mode and 200nA in Sleep mode. In addition to ultra-low-power performance, these devices feature Full Speed USB host and device, Event System and Sleepwalking, 12-bit analog, AES, capacitive touch sensing, built in opAmps and much more.

Supported by MPLAB X IDE and MPLAB Harmony.

Functional Safety

This device supports the IEC 61508 (SIL 2) functional safety standard.

·   To request any information about the SIL 2 STL, please fill out and submit the request form on Industrial Safety Self-Test Library web page

·  Learn more about  32-bit MCUs with Functional Safety capabilities including device hardware and certified software libraries.



  • ARM Cortex-M0+ CPU running at up to 48MHz
  • 64 KB in-system self-programmable Flash
  • 2 KB Flash Read-While-Write section
  • 8 KB SRAM Main Memory
  • 4 KB SRAM Low power Memory
  • Operating voltage: 1.62V – 3.63V
  • Ultra Low Power Architecture consuming under 35uA/MHz in Active mode
  • Idle, Standby, Backup, and Off sleep modes
  • Battery backup support
  • Two Performance Levels
  • Embedded Buck/LDO regulator supporting on-the-fly selection
  • Peripheral Touch Controller (PTC)
  • Wake-up on touch in standby mode
  • Two-pin Serial Wire Debug (SWD) programming, test and debugging interface
  • Temperature Range - 40°C to 85°C, - 40°C to 105°C
  • 16-channel Direct Memory Access Controller (DMAC)
  • 12-channel Event System
  • 16-bit Timer/Counters (TC) including one low-power TC
  • Two 24-bit and one 16-bit Timer/Counters for Control (TCC)
  • 32-bit Real Time Counter (RTC) with clock/calendar function
  • Watchdog Timer (WDT)
  • CRC-32 generator
  • One full-speed (12Mbps) Universal Serial Bus (USB) 2.0 interface
  • USART, I2C, SPI, LIN slave
  • One AES Encryption Engine & TRNG
  • One Configurable Custom Logic (CCL) Advanced Analog:
  • One 12-bit, 1MSPS Analog-to-Digital Converter (ADC)
  • Two channel, 12-bit, 1MSPS Dual Output Digital-to-Analog Converter (DAC)
  • Two Analog Comparators (AC) with window compare function
  • Three Operational Amplifiers (OPAMP)
