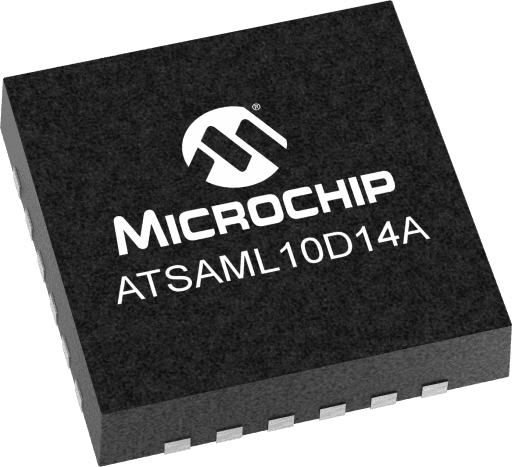

Microchip ATSAML10D14A-YUT
Manufacturer No:
ATSAML10D14A-YUT
Manufacturer:
Microchip
Package:
24-SSOP (0.209, 5.30mm Width)
Description:
Ultra-Low Power 32-bit MCU, Chip-level security, Arm TrustZone, enhanced touch, advanced analog and serial interfaces
Quantity:
In Stock :4356
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Mon, Jun 1 - Tue, Jun 2, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
ATSAML10D14A-YUT Information
Microchip ATSAML10D14A-YUT technical specifications, attributes, parameters and parts with similar specifications to Microchip ATSAML10D14A-YUT.
- Type
- Parameter
- Part Family
- SAM L10
- CPU Type
- Cortex-M23
- MaxSpeed (MHz)
- 32
- Program Memory Size (KB)
- 16
- SRAM (KB)
- 4
- Temp. Range Min.
- -40
- Temp. Range Max.
- 125
- Operation Voltage Min.(V)
- 1.62
- Operation Voltage Max.(V)
- 3.63
- SPI
- 2
- Type
- Parameter
- I2C
- 2
- UART
- 2
- QSPI
- 0
- Crypto Engine
- No
- Internal Oscillator
- 32Khz ULP, 16Mhz
- Pin Count
- 24
Download datasheets and manufacturer documentation for Microchip ATSAML10D14A-YUT.
Legacy Collaterals:
Supporting Collateral:
Data Sheets:
Tech Brief:
User Guide:
Application Notes:
Industry’s first and lowest power Arm® Cortex®-M23 MCU consuming less than 25 uA/MHz in active mode and less than 100 nA in sleep mode. It features enhanced peripheral touch controller, advanced analog, ISO7816 smart card interface, event system and SleepWalking peripherals.
SAM L10 achieved EEMBC Certified ULPMark Core Profile score of 396 & Peripheral Profile score of 166
Supported by MPLAB X IDE and MPLAB Harmony.
- Processor:
- ARM Cortex®-M23
- 32 MHz (2.62 CoreMark/MHz and up to 31 DMIPS)
- Single-cycle hardware multiplier
- Hardware divider
- Nested Vector Interrupt Controller (NVIC)
- Memory Protection Unit (MPU)
- Operating Voltage Range:
- 1.62V to 3.63V
- Memory:
- 16 KB Flash
- 4 KB SRAM
- 2 KB Data Flash section for non-volatile data storage
- 256 bytes TrustRAM with physical protection features
- Ultra-Low Power:
- Active, Idle, Standby with partial or full SRAM retention and off sleep modes
- Active mode (< 25 μA/MHz)
- Idle mode (< 10 μA/MHz) with 1.5 μs wake-up time
- Standby with Full SRAM Retention (0.5 μA) with 5.3 μs wake-up time
- Off mode (< 100 nA)
- Enhanced Peripheral Touch Controller (PTC):
- Driven Shield Plus for moisture tolerance and noise immunity
- Parallel Acquisition through Polarity control
- Supports wake-up on touch from Standby Sleep mode
- Advanced Analog:
- 12-bit, 1 MSPS Analog-to-Digital Converter (ADC)
- Analog Comparators (AC) with window compare function
- 10-bit, 350 KSPS DAC with external and internal outputs
- Operational Amplifiers
- Serial Communication Interfaces (SERCOM) that can operate as:
- USART, I2C, SPI
- Qualification and Class-B Support:
- AEC-Q100 REVH (Grade 1 [-40ºC to +125ºC]) (planned)
- Class-B safety library, IEC 60730 (planned)
- Temperature options:
- -40 C to 85 C
- -40 C to 125 C
- Debugger Development Support:
- Two-pin Serial Wire Debug (SWD) programming and debugging interface
