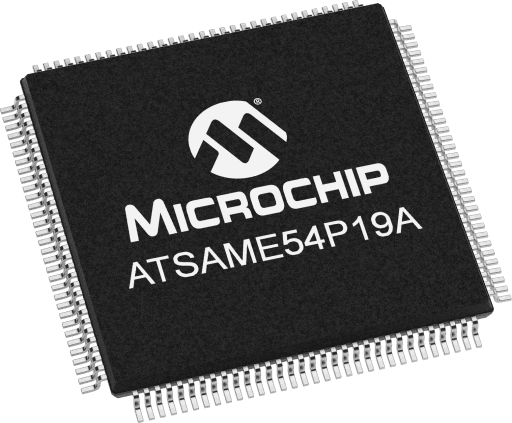

Microchip ATSAME54P19A-AF

The SAM E54 high performance micro-controller series features a 32-bit ARM® Cortex®-M4 processor with Floating Point Unit (FPU), running up to 120 MHz ,up to 1 MB Dual Panel Flash with ECC, and up to 256 KB of SRAM with ECC .It also adds a 10/100 Ethernet MAC and 2 CAN-FD ports targeted for industrial automation ,automotive applications and general purpose applications requiring Wired connectivity.

Series offers excellent features with class leading power performance and integrated hardware security.

Key features

·         Quad Serial Peripheral Interface(QSPI) with Execute in Place (XIP) Support.

·         Up to 2 Secure Digital Host Controller (SDHC)

·    10/100 Ethernet MAC with IEEE 1588 support.

·        Up to 2 CAN-FD Interface.

·         Inter-IC Sound(I2S)Controller for Audio

·         Peripheral Touch Controller (PTC) supporting up to 256 channels of capacitive touch .

·         Full speed USB with embedded Host/device.

·         Supports 5 Low power modes with class leading 65µA/MHz Active Power Performance.

·         Integrated security including Asymmetric and Symmetric Crypto hardware acceleration

·         Serial communication (SERCOM) ports configurable as UART/USART, ISO 7816, SPI or I²C

Supported by MPLAB X IDE and MPLAB Harmony.

Functional Safety

This device supports the ISO 26262 (ASIL B) functional safety standard.

·   The Functional Safety Manual, FMEDA and information on the Diagnostic Software are available under NDA through the request form on the 32-bit Microcontrollers Functional Safety  web page.

·  Learn more about 32-bit MCUs with Functional Safety capabilities including device hardware and certified software libraries.

• ARM Cortex-M4F CPU running at up to 120 MHz
• Floating Point Unit (FPU)
• Embedded Trace Module (ETM) with instruction trace stream
• Core Sight Embedded Trace Buffer (ETB)
• Error Correction Code (ECC)
• Dual bank with Read-While-Write (RWW) support
• EEPROM hardware emulation
• Error Correction Code (ECC) RAM option
• Up to 4 KB of Tightly Coupled Memory (TCM)
• Up to 8 KB additional SRAM with backup retention capability
• Power-on Reset (POR) and Brown-out detection (BOD)
• Internal and external clock options
• External Interrupt Controller (EIC)
• Two-pin Serial Wire Debug (SWD) programming, test, and debugging interface
• Five Low Power Modes (Idle, Standby, Hibernate, Backup, and Off )
• Sleep Walking peripherals.
• Battery backup support
• Embedded Buck/LDO regulator supporting on-the-fly selection.
• 65µA/MHz active power consumption.
• Five confidential modes of operation (ECB, CBC, CFB, OFB, CTR)
• True Random Number Generator (TRNG)
• RSA, DSA
• Elliptic Curves Cryptography (ECC) ECC GF(2n), ECC GF(p)
• Integrity Check Module (ICM) based on Secure Hash Algorithm (SHA1, SHA224, SHA256), DMA
• 32-channel Direct Memory Access Controller (DMAC)
• Compatibility with SD and SDHC Memory Card Specification Version 3.01
• Compatibility with SDIO Specification Version 3.0
• Compliant with JDEC specification, MMC memory cards V4.51
• eXecute-In-Place (XIP) support
• Up to 75 MHz SDR operation and DDR support
• Embedded host and device function
• 10/100 Mbps in MII and RMII with dedicated DMA
• IEEE 1588 Precision Time Protocol (PTP) , Time Stamping Unit (TSU) support
• IEEE802.3AZ/AF/PoE energy efficiency support
• Support for 802.1AS and 1588 precision clock synchronization protocol
• Wake on LAN support
• supporting CAN2.0 A/B and CAN-FD 1.0
• USART with full-duplex and single-wire half-duplex configuration
• ISO7816
• I2C up to 3.4MHz
• SPI
• LIN master/slave
• RS485
• SPI inter-byte space
• One two-channel Inter-IC Sound Interface (I2S)
• Up to 14-bit parallel capture mode
• Up to 256 channel capacitive touch and proximity sensing
• 32-channel Event System
• 16-bit ,32-bit or 8-bit TC with two compare/capture channels
• Two 24-bit Timer/Counters for Control (TCC), with extended functions
• Three 16-bit Timer/Counters for Control (TCC), with extended functions
• Up to 5 wake-up pins with tamper detection and de-bouncing filter
• Watchdog Timer (WDT) with Window mode
• CRC-32 generator
• Position Decoder (PDEC)
• Frequency meter (FREQM)
• One Configurable Custom Logic (CCL)
• Differential and single-ended input
• Automatic offset and gain error compensation
• Oversampling and decimation in hardware to support 13-, 14-, 15-, or 16-bit resolution
• Dual 12-bit, 1 MSPS Output Digital-to-Analog Converter (DAC)
• Two Analog Comparators (AC) with Window Compare function
• One temperature sensor
• 99  programmable I/O pins
• 1.71V – 3.6V
• 128-pin TQFP,120-pin TFBGA
