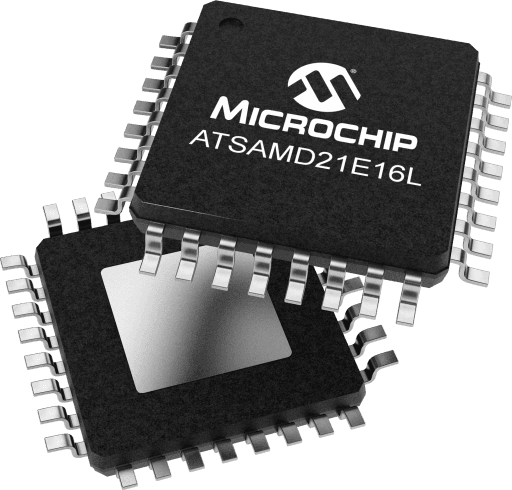

Microchip ATSAMD21E16L-MNT
Microchip ATSAMD21E16L-MNTMicrochip ATSAMD21E16L-MNT

Microchip ATSAMD21E16L-MNT

Manufacturer No:

ATSAMD21E16L-MNT

Manufacturer:

Microchip

Package:

32-VFQFN Exposed Pad

Description:

SAM21L, 64KB Flash, 8KB RAM, Motor control, Lighting, ARM Cortex M0+, low power, 32-pin

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATSAMD21E16L-MNT information

Microchip ATSAMD21E16L-MNT technical specifications, attributes, parameters and parts with similar specifications to Microchip ATSAMD21E16L-MNT.

  • Type
  • Parameter
  • Part Family
  • SAMD21
  • CPU Type
  • Cortex-M0+
  • MaxSpeed (MHz)
  • 48
  • Program Memory Size (KB)
  • 64
  • SRAM (KB)
  • 8
  • Temp. Range Min.
  • -40
  • Temp. Range Max.
  • 125
  • Operation Voltage Min.(V)
  • 1.62
  • Operation Voltage Max.(V)
  • 3.63
  • SPI
  • 5
  • I2C
  • 5
  • UART
  • 5
  • QSPI
  • 0
  • Crypto Engine
  • No
  • Internal Oscillator
  • 32khz, 32Khz ULP, 8Mhz
  • Pin Count
  • 32

Download datasheets and manufacturer documentation for Microchip ATSAMD21E16L-MNT.

Legacy Collaterals:

User Guide:

Application Notes:

Tech Brief:

Errata:

Data Sheets:

Brochures:

Supporting Collateral:

A low-power, high-performance ARM® Cortex®-M0+ -based Flash microcontroller optimized for control applications, the Microchip's ATSAMD21E16L is ideal for a wide range of lighting, motor control and industrial applications. It features:

  • 64KB of Flash and 8KB of SRAM
  • Up to 48MHz operating frequency
  • Five serial communication (SERCOM) modules configurable as UART/USART, SPI or I2C, four 16-bit timer/counters, two 24-bit timer/counters, 32-bit Real-Time Clock and calendar, one 14-channel 12-bit ADC, one 10-bit DAC and four analog comparators
  • 1.62V to 3.63V power supply
  • 32-pin package with up to 26 GPIO pins
  • Supported by Atmel Studio, ASF and the STK600 development platform


Supported by MPLAB X IDE and MPLAB Harmony.



  • Single-cycle hardware multiplier
  • Micro Trace Buffer (MTB)
  • 64KB in-system self-programmable Flash
  • 8KB SRAM Memory
  • Power-on reset (POR) and brownout detection (BOD)
  • Internal and external clock options with 48MHz Digital Frequency Locked Loop (DFLL48M)
  • and 48MHz to 96MHz Fractional Digital Phase Locked Loop (FDPLL96M)
  • External Interrupt Controller (EIC)
  • 16 external interrupts
  • One non-maskable interrupt
  • Two-pin Serial Wire Debug (SWD) programming, test and debugging interface
  • Idle and standby sleep modes
  • SleepWalking peripherals
  • 12channel Direct Memory Access Controller (DMAC)
  • 12channel Event System
  • One 16bit TC with two compare/capture channels
  • One 8bit TC with two compare/capture channels
  • One 32bit TC with two compare/capture channels, by using two TCs
  • Up to four compare channels with optional complementary output
  • Generation of synchronized pulse width modulation (PWM) pattern across port pins
  • Deterministic fault protection, fast decay and configurable dead-time between complementary output
  • Dithering that increase resolution with up to 5 bit and reduce quantization error
  • 32bit Real Time Counter (RTC) with clock/calendar function
  • Watchdog Timer (WDT)
  • CRC32 generator
  • USART with full-duplex and single-wire half-duplex configuration
  • I2C up to 3.4MHz
  • SPI
  • LIN slave
  • Differential and single-ended input
  • 1/2x to 16x programmable gain stage
  • Automatic offset and gain error compensation
  • Oversampling and decimation in hardware to support 13, 14, 15or 16bit resolution
  • 10-bit, 350ksps Digital-to-Analog Converter (DAC)
  • Four Analog Comparators (AC) with window compare function
  • 26 GPIO pins
  • 32-pin QFN
  • 1.62V - 3.63V
