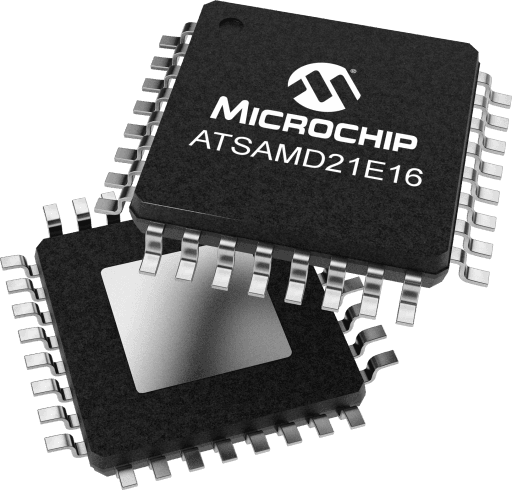

Microchip ATSAMD21E16B-AU
Manufacturer No:
ATSAMD21E16B-AU
Manufacturer:
Microchip
Package:
32-TQFP
Description:
SAMD21, 64KB Flash, 8KB RAM, General Purpose, low cost, ARM Cortex M0+, low power, 32-pin
Quantity:
In Stock :2765
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Mon, Jun 1 - Tue, Jun 2, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
ATSAMD21E16B-AU Information
Microchip ATSAMD21E16B-AU technical specifications, attributes, parameters and parts with similar specifications to Microchip ATSAMD21E16B-AU.
- Type
- Parameter
- Part Family
- SAMD21
- CPU Type
- Cortex-M0+
- MaxSpeed (MHz)
- 48
- Program Memory Size (KB)
- 64
- SRAM (KB)
- 8
- Temp. Range Min.
- -40
- Temp. Range Max.
- 125
- Operation Voltage Min.(V)
- 1.62
- Operation Voltage Max.(V)
- 3.63
- SPI
- 4
- Type
- Parameter
- I2C
- 4
- UART
- 4
- QSPI
- 0
- Crypto Engine
- No
- Internal Oscillator
- 32khz, 32Khz ULP, 8Mhz
- Pin Count
- 32
Download datasheets and manufacturer documentation for Microchip ATSAMD21E16B-AU.
Application Notes:
Supporting Collateral:
Tech Brief:
Data Sheets:
Brochures:
Legacy Collaterals:
User Guide:
NOTE: ATSAMD21E16A is not recommended for new designs, please use ATSAMD21E16B.
A low-power, high-performance ARM® Cortex®-M0+ -based Flash microcontroller optimized for control applications, the ATSAMD21E16 is ideal for a wide range of home automation, consumer, metering, and industrial applications. It features:
- 64KB of Flash and 8KB of SRAM
- Up to 48MHz operating frequency
- Five serial communication (SERCOM) modules configurable as UART/USART, SPI or I2C, four 16-bit timer/counters, two 24-bit timer/counters, 32-bit Real-Time Clock and calendar, one 14-channel 12-bit ADC, one 10-bit DAC and four analog comparators
- 1.62V to 3.63V power supply
- 32-pin package with up to 26 GPIO pins
Supported by MPLAB X IDE and MPLAB Harmony.
Functional Safety
This device supports the ISO 26262 (ASIL B), IEC 61508 (SIL 2) and IEC 60730 (Class B) functional safety standards.
· The Functional Safety Manual, FMEDA and information on the Diagnostic Software are available under NDA through the request form on the 32-bit Microcontrollers Functional Safety web page.
· To request any information about the SIL 2 STL, please fill out and submit the request form on Industrial Safety Self-Test Library web page.
· Learn more about 32-bit MCUs with Functional Safety capabilities including device hardware and certified software libraries.
- Memories
- Micro Trace Buffer
- 64KB in-system self-programmable Flash
- 8KB SRAM Memory
- Power-on reset (POR) and brown-out detection (BOD)
- Internal and external clock options with 48MHDigital Frequency Locked Loop (DFLL48M) and 48MHto 96MHFractional
- External Interrupt Controller (EIC)
- 16 external interrupts
- One non-maskable interrupt
- Two-pin Serial Wire Debug (SWD) programming, test and debugging interface
- Drop in compatible with SAM D20
- Idle and standby sleep modes
- SleepWalking peripherals
- 12-channel Direct Memory Access Controller (DMAC)
- 12-channel Event System
- One 16-bit TC with compare/capture channels
- One 8-bit TC with compare/capture channels
- One 32-bit TC with compare/capture channels, by using two TCs
- Up to four compare channels with optional complementary output
- Generation of synchronized pulse width modulation (PWM) pattern across port pins
- Deterministic fault protection, fast decay and configurable dead-time between complementary output
- Dithering that increase resolution with up to 5 bit and reduce quantization error
- 32-bit Real Time Counter (RTC) with clock/calendar function
- Watchdog Timer (WDT)
- CRC-32 generator
- Embedded device function
- Eight endpoints
- USART with full-duplex and single-wire half-duplex configuration
- I2C Bus up to 3.4MHz
- SMBUS/PMBUS
- SPI
- LIN client
- Differential and single-ended input
- 1/2x to 16x programmable gain stage
- Automatic offset and gain error compensation
- Oversampling and decimation in hardware to support 13-, 14-, 15- or 16-bit resolution
- 10-bit, 350ksps Digital-to-Analog Converter (DAC)
- Two Analog Comparators (AC) with window compare function
- 256-channel capacitive touch and proximity sensing
- 26 GPIO pins
- 32-pin TQSP, QFN, WLCSP
- 1.62V – 3.63V
- Memories
- Processor
- Arm Cortex-M0+ CPU running at up to 48MHz
