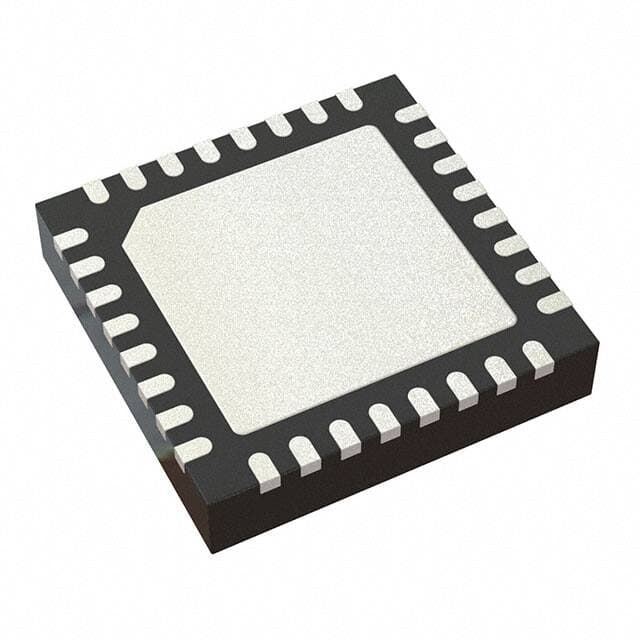

Microchip ATSAMD21E15A-MUT
Microchip ATSAMD21E15A-MUT

Microchip ATSAMD21E15A-MUT

Manufacturer No:

ATSAMD21E15A-MUT

Manufacturer:

Microchip

Package:

32-VFQFN Exposed Pad

Description:

32KB 32K x 8 FLASH ARM® Cortex®-M0+ 32-Bit Microcontroller SAM D21E Series ATSAMD21E15 32 Pin 3.3V 32-VFQFN Exposed Pad

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATSAMD21E15A-MUT information

Microchip ATSAMD21E15A-MUT technical specifications, attributes, parameters and parts with similar specifications to Microchip ATSAMD21E15A-MUT.

  • Type
  • Parameter
  • Factory Lead Time
  • 10 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 32-VFQFN Exposed Pad
  • Number of Pins
  • 32
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • SAM D21E
  • Published
  • 2016
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 32
  • HTS Code
  • 8542.31.00.01
  • Technology
  • CMOS
  • Terminal Position
  • QUAD
  • Terminal Form
  • NO LEAD
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 0.5mm
  • Base Part Number
  • ATSAMD21E15
  • Operating Supply Voltage
  • 3.3V
  • Interface
  • I2C, I2S, SPI, USART, USB
  • Memory Size
  • 32kB
  • Oscillator Type
  • Internal
  • RAM Size
  • 4K x 8
  • Voltage - Supply (Vcc/Vdd)
  • 1.62V~3.6V
  • uPs/uCs/Peripheral ICs Type
  • MICROCONTROLLER, RISC
  • Core Processor
  • ARM® Cortex®-M0+
  • Peripherals
  • Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
  • Program Memory Type
  • FLASH
  • Core Size
  • 32-Bit
  • Program Memory Size
  • 32KB 32K x 8
  • Connectivity
  • I2C, LINbus, SPI, UART/USART, USB
  • Bit Size
  • 32
  • Data Converter
  • A/D 10x12b; D/A 1x10b
  • Watchdog Timer
  • Yes
  • Has ADC
  • YES
  • DMA Channels
  • YES
  • PWM Channels
  • YES
  • DAC Channels
  • YES
  • Number of Timers/Counters
  • 6
  • Core Architecture
  • ARM
  • On Chip Program ROM Width
  • 8
  • Max Frequency
  • 48MHz
  • Length
  • 5mm
  • Height Seated (Max)
  • 1mm
  • Width
  • 5mm

Download datasheets and manufacturer documentation for Microchip ATSAMD21E15A-MUT.

Datasheets:

PCN Packaging:

ConflictMineralStatement:

ATSAMD21E15A-MUT Overview


The package is 32-VFQFN Exposed Pad-shaped. There are 26 I/Os. In the case of the IC chip, the type of mounting is Surface Mount. Microcontroller is based on the 32-Bit core architecture. The type of program memory it uses is FLASH. Temperatures in the range of -40°C~85°C are operated by this Microcontroller. It is part of the SAM D21E series of electrical components. Having a size of 32KB 32K x 8, Microcontroller has a program memory of X bytes. A ARM® Cortex®-M0+ Core Processor is at the core of this Microcontroller. This device belongs to the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. IC Chip 32 has 32 terminations. 32-bits are used for its size. IC Chip has 3.3V volt supply outputs. With YES DMA channels, Microcontroller chip can handle large data transfers. 32kB is the size of the memory in the IC part. Using the base part number ATSAMD21E15, you will be able to find alternatives for the part. Devices work in YES PWM channels. On the chip, 32 pins are accessible. In total, there are 6 timers/counters on the device. In addition, it comes with a ARM core architecture.

ATSAMD21E15A-MUT Features


32-VFQFN Exposed Pad package
Mounting type of Surface Mount


ATSAMD21E15A-MUT Applications


There are a lot of Microchip Technology
ATSAMD21E15A-MUT Microcontroller applications.


  • Instrument control
  • Toys
  • Robots
  • Radio
  • Television
  • Heater/Fan
  • Calculator
  • Kindle
  • Christmas lights
  • 3D printers
