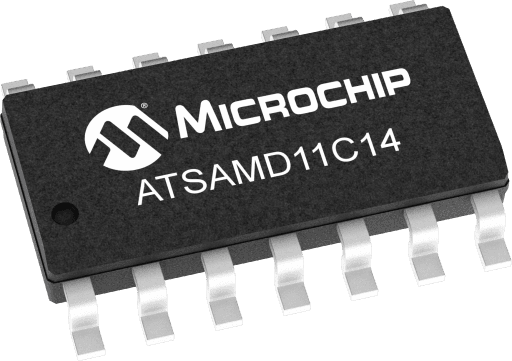

Microchip ATSAMD11C14A-SSNT
Microchip ATSAMD11C14A-SSNT

Microchip ATSAMD11C14A-SSNT

Manufacturer No:

ATSAMD11C14A-SSNT

Manufacturer:

Microchip

Package:

14-SOIC (0.154, 3.90mm Width)

Description:

SAMD11, 16KB Flash, 4KB RAM, low cost, ARM Cortex M0+, low power, 14-pin

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATSAMD11C14A-SSNT information

Microchip ATSAMD11C14A-SSNT technical specifications, attributes, parameters and parts with similar specifications to Microchip ATSAMD11C14A-SSNT.

  • Type
  • Parameter
  • Part Family
  • SAMD11
  • CPU Type
  • Cortex-M0+
  • MaxSpeed (MHz)
  • 48
  • Program Memory Size (KB)
  • 16
  • SRAM (KB)
  • 4
  • Temp. Range Min.
  • -40
  • Temp. Range Max.
  • 105
  • Operation Voltage Min.(V)
  • 1.62
  • Operation Voltage Max.(V)
  • 3.63
  • SPI
  • 2
  • I2C
  • 2
  • UART
  • 2
  • QSPI
  • 0
  • Crypto Engine
  • No
  • Internal Oscillator
  • 32khz, 32Khz ULP, 8Mhz
  • Pin Count
  • 14

Download datasheets and manufacturer documentation for Microchip ATSAMD11C14A-SSNT.

User Guide:

Application Notes:

Tech Brief:

Errata:

Data Sheets:

Brochures:

Legacy Collaterals:

A low-power, high-performance ARM® Cortex®-M0+ based flash microcontroller, the Microchip's ATSAMD11C14 is ideal for a wide range of home automation, consumer, metering and industrial applications. It features:

  • 16KB of flash memory and 4KB of SRAM
  • Up to 48MHz operating frequency
  • Two serial communication modules (SERCOM) configurable as UART/USART, SPI or I2C, two 16-bit timer/counters, 32-bit Real-Time Clock and calendar, 12 PWM channels, one 5-channel 12-bit ADC, one 10-bit DAC
  • Full-Speed USB device
  • Supports 7/12 self-capacitance touch channels in low/high pincount devices
  • Supports 72 mutual-capacitance touch channels
  • 1.62V to 3.63V power supply
  • Easy pin migration to SAMD11D devices



Supported by MPLAB X IDE and MPLAB Harmony.



  • Single-cycle hardware multiplier
  • Micro Trace Buffer
  • 16KB in-system self-programmable Flash
  • 4KB SRAM Memory
  • Power-on reset (POR) and brown-out detection (BOD)
  • Internal and external clock options with 48MHDigital Frequency Locked Loop (DFLL48M) and 48MHto 96MHFractional
  • Digital Phase Locked Loop (FDPLL96M)
  • External Interrupt Controller (EIC)
  • 8 external interrupts
  • One non-maskable interrupt
  • Two-pin Serial Wire Debug (SWD) programming, test and debugging interface
  • Idle and standby sleep modes
  • SleepWalking peripherals
  • 6-channel Direct Memory Access Controller (DMAC)
  • 6-channel Event System
  • One 16-bit TC with compare/capture channels
  • One 8-bit TC with compare/capture channels
  • One 32-bit TC with compare/capture channels, by using two TCs
  • Up to four compare channels with optional complementary output
  • Generation of synchronized pulse width modulation (PWM) pattern across port pins
  • Deterministic fault protection, fast decay and configurable dead-time between complementary output
  • Dithering that increase resolution with up to 5 bit and reduce quantization error
  • 32-bit Real Time Counter (RTC) with clock/calendar function
  • Watchdog Timer (WDT)
  • CRC-32 generator
  • Embedded device function
  • Eight endpoints
  • Can run from internal RC oscillator
  • USART with full-duplex and single-wire half-duplex configuration
  • I2C Bus up to 3.4MHz
  • SMBUS/PMBUS
  • SPI
  • LIN client
  • Differential and single-ended input
  • 1/2x to 16x programmable gain stage
  • Automatic offset and gain error compensation
  • Oversampling and decimation in hardware to support 13-, 14-, 15- or 16-bit resolution
  • 10-bit, 350ksps Digital-to-Analog Converter (DAC)
  • Two Analog Comparators (AC) with window compare function
  • Up to 72-channel capacitive touch and proximity sensing
  • 12 GPIO pins
  • 14-pin SOIC
  • 1.62V – 3.63V
