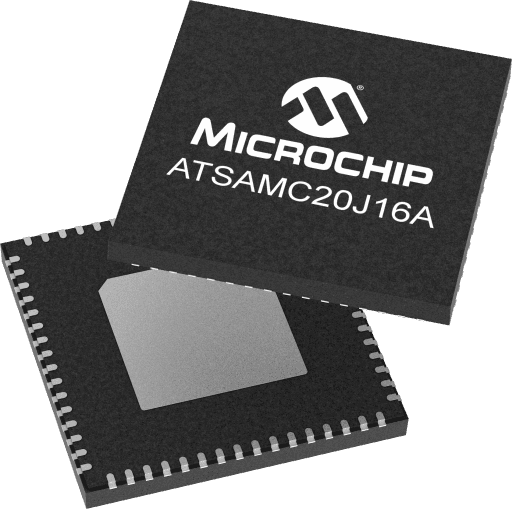

Microchip ATSAMC20J16A-AUT
Microchip ATSAMC20J16A-AUTMicrochip ATSAMC20J16A-AUTMicrochip ATSAMC20J16A-AUTMicrochip ATSAMC20J16A-AUTMicrochip ATSAMC20J16A-AUT

Microchip ATSAMC20J16A-AUT

Manufacturer No:

ATSAMC20J16A-AUT

Manufacturer:

Microchip

Package:

64-TQFP Exposed Pad

Description:

ATSAMC20J16A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATSAMC20J16A-AUT information

Microchip ATSAMC20J16A-AUT technical specifications, attributes, parameters and parts with similar specifications to Microchip ATSAMC20J16A-AUT.

  • Type
  • Parameter
  • Part Family
  • SAMC20
  • CPU Type
  • Cortex-M0+
  • MaxSpeed (MHz)
  • 48
  • Program Memory Size (KB)
  • 64
  • SRAM (KB)
  • 8
  • Temp. Range Min.
  • -40
  • Temp. Range Max.
  • 125
  • Operation Voltage Min.(V)
  • 2.7
  • Operation Voltage Max.(V)
  • 5.5
  • SPI
  • 4
  • I2C
  • 4
  • UART
  • 4
  • QSPI
  • 0
  • Crypto Engine
  • No
  • Internal Oscillator
  • 32khz, 32Khz ULP, 48Mhz
  • Pin Count
  • 64

Download datasheets and manufacturer documentation for Microchip ATSAMC20J16A-AUT.

Application Notes:

Brochures:

Legacy Collaterals:

User Guide:

Data Sheets:

Errata:

Tech Brief:

The Microchip SAM C series of 5V Cortex M0+ devices is designed for industrial and commercial applications in noisy environments. These products feature robust communications peripherals including the SERCOM module and CAN-FD, along with advanced motor control peripherals, and the Peripheral Touch Control (PTC) for developing robust user interfaces.


Supported by MPLAB X IDE and MPLAB Harmony.



  • ARM Cortex-M0+ CPU running at up to 48MHz
  • Single-cycle hardware multiplier
  • Micro Trace Buffer
  • Memory Protection Unit (MPU)
  • 64KB in-system self-programmable Flash
  • 2KB independent self-programmable Flash for EEPROM emulation
  • 8KB SRAM Main Memory
  • Power-on reset (POR) and brown-out detection (BOD)
  • Internal and external clock options with 48MHz to 96MHz
  • Fractional Digital Phase Locked Loop (FDPLL96M)
  • 16 external interrupts
  • One non-maskable interrupt
  • Two-pin Serial Wire Debug (SWD) programming, test and debugging interface
  • Idle, standby, and off sleep modes
  • SleepWalking peripherals
  • 6-channel Direct Memory Access Controller (DMAC)
  • 6-channel Event System
  • One 16-bit TC with compare/capture channels
  • One 8-bit TC with compare/capture channels
  • Hardware Divide and Square Root Accelerator
  • One 32-bit TC with compare/capture channels, by using two TCs
  • Up to four compare channels with optional complementary output
  • Generation of synchronized pulse width modulation (PWM) pattern across port pins
  • Deterministic fault protection, fast decay and configurable dead-time between complementary outputs
  • Dithering that increase resolution with up to 5 bit and reduce quantization error
  • Frequency Meter
  • 32-bit Real Time Counter (RTC) with clock/calendar function
  • Watchdog Timer (WDT)
  • CRC-32 generator
  • USART with full-duplex and single-wire half-duplex configuration
  • I2C up to 3.4MHz (Except SERCOM6 and SERCOM7)
  • SPI
  • LIN master/slave
  • RS-485
  • One Configurable Custom Logic (CCL)
  • Differential and single-ended input
  • Automatic offset and gain error compensation
  • Oversampling and decimation in hardware to support 13-, 14-, 15- or 16-bit resolution
  • Two Analog Comparators (AC) with window compare function
  • Integrated Temperature Sensor
  • Peripheral Touch Controller (PTC)
  • 256-Channel capacitive touch and proximity sensing I/O
  • Up to 52 programmable I/O pins
  • Drop in compatible with select SAM D20 and SAM D21
  • 2.7V – 5.5V
