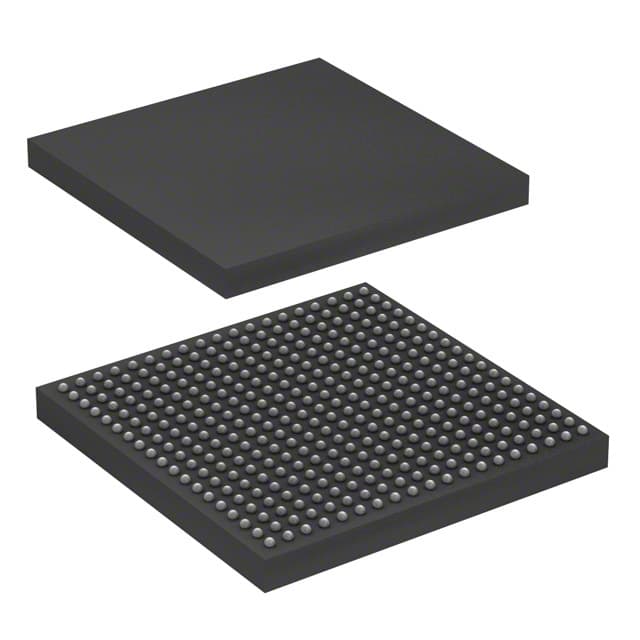

Microchip ATSAMA5D44A-CU
Microchip ATSAMA5D44A-CU

Microchip ATSAMA5D44A-CU

Manufacturer No:

ATSAMA5D44A-CU

Manufacturer:

Microchip

Package:

361-TFBGA

Description:

ARM® Cortex®-A5 Microprocessor SAMA5D4 Series ATSAMA5D44 361-Pin 528MHz 361-TFBGA

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATSAMA5D44A-CU information

Microchip ATSAMA5D44A-CU technical specifications, attributes, parameters and parts with similar specifications to Microchip ATSAMA5D44A-CU.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Contact Plating
  • Copper, Silver, Tin
  • Mount
  • Surface Mount
  • Package / Case
  • 361-TFBGA
  • Number of Pins
  • 361
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Tray
  • Series
  • SAMA5D4
  • Published
  • 2014
  • Pbfree Code
  • yes
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Frequency
  • 528MHz
  • Base Part Number
  • ATSAMA5D44
  • Operating Supply Voltage
  • 1.8V
  • Interface
  • 2-Wire, EBI/EMI, Ethernet, I2C, MMC, SD, SPI, UART, USART, USB
  • Max Supply Voltage
  • 1.98V
  • Min Supply Voltage
  • 1.62V
  • Memory Size
  • 128kB
  • Oscillator Type
  • Internal
  • Number of I/O
  • 152
  • RAM Size
  • 128kB
  • Memory Type
  • L2 Cache, ROM, SRAM
  • Core Processor
  • ARM® Cortex®-A5
  • Data Bus Width
  • 32b
  • Number of Timers/Counters
  • 3
  • Core Architecture
  • ARM
  • Voltage - I/O
  • 1.2V 1.8V 3.3V
  • Ethernet
  • 10/100Mbps (1)
  • Number of Cores/Bus Width
  • 1 Core 32-Bit
  • Graphics Acceleration
  • Yes
  • RAM Controllers
  • LPDDR, LPDDR2, DDR2
  • USB
  • USB 2.0 (3)
  • Additional Interfaces
  • EBI, I2C, MMC/SD/SDIO, SPI, SSC, UART, USART
  • Co-Processors/DSP
  • Multimedia; NEON™ SIMD
  • Number of Cores
  • 1
  • Security Features
  • AES, SHA, TDES, TRNG
  • Display & Interface Controllers
  • LCD, Touchscreen
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Microchip ATSAMA5D44A-CU.

Datasheets:

PCN Design/Specification:

PCN Assembly/Origin:

PCN Packaging:

ConflictMineralStatement:

ATSAMA5D44A-CU Overview


The microprocessor is convenient for international shipping since it is packaged in 361-TFBGA. The packaging method Tray provides high reliability. There are 1 Core 32-Bit cores per bus width on the CPU. The operating temperature around -40°C~85°C TA should be understood. This is part of the SAMA5D4 series. The CPU is powered by a ARM® Cortex®-A5 core. There are LPDDR, LPDDR2, DDR2 RAM controllers on this CPU. This microprocessor features EBI, I2C, MMC/SD/SDIO, SPI, SSC, UART, USART interfaces to better serve its users. The CPU runs I/O at 1.2V 1.8V 3.3V. Using ATSAMA5D44 will help you find variants of the cpu microprocessor. 528MHz is the CPU's frequency. Datasheets for 361 pin functions can be found here. To transfer data, there is a bandwidth of 32b. There are 1 cores in this CPU. This CPU is widely used in a variety of applications with its Surface Mount mounting. It is possible to use the micro processor from 1.8V. It is designed with 0 RAM (Random-Access Memory). A voltage greater than 1.98V should not normally be applied to the embedded microprocessor. It is recommended to feed the CPU microprocessor with a voltage of 1.62V. By using 152 I/Os, CPU programs transfer data. Memory size on the CPU is 128kB. CPU activity is measured by the 3 counters. A total of DMA, LCD, POR, PWM, WDT peripheral devices are connected to the CPU.

ATSAMA5D44A-CU Features


ARM® Cortex®-A5 Core
32b-Bit Data Bus Width
1-Core CPU
128kB RAM
152 I/Os
DMA, LCD, POR, PWM, WDT Peripherals


ATSAMA5D44A-CU Applications


There are a lot of Microchip Technology
ATSAMA5D44A-CU Microprocessor applications.


  • Equipment control
  • Instrument control
  • Consumer electronics products
  • Toys
  • Robots
  • Radio
  • Television
  • Heater/Fan
  • Calculator
  • Kindle
