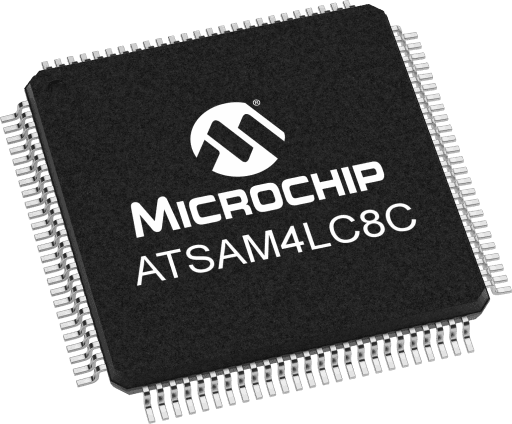

Microchip ATSAM4LC8CA-CFU
Manufacturer No:
ATSAM4LC8CA-CFU
Manufacturer:
Microchip
Package:
100-VFBGA
Description:
ATSAM4LC8C
Quantity:
In Stock :4700
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Fri, May 29 - Sat, May 30, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
ATSAM4LC8CA-CFU Information
Microchip ATSAM4LC8CA-CFU technical specifications, attributes, parameters and parts with similar specifications to Microchip ATSAM4LC8CA-CFU.
- Type
- Parameter
- CPU
- Cortex-M4
- I2C
- 4
- CPU Speed Max MHz (megahertz)
- 48
- Operation Voltage Max.(V)
- 3.6
- Operation Voltage Min.(V)
- 1.68
- Internal Oscillator
- 80Mhz, 2,4,8Mhz , 32Khz, 115Khz
- Part Family
- ATSAM4LC8C
- QSPI
- 0
- Segmented LCD (# of segments)
- 160
- U(S)ART
- 4 -UART
- Type
- Parameter
- Program Memory Size (KB)
- 512
- Pincount
- 100
- Crypto Engine
- Yes
- TempRange Min
- -40
- TempRange Max
- 85
Download datasheets and manufacturer documentation for Microchip ATSAM4LC8CA-CFU.
Application Notes:
Brochures:
User Guide:
Miscellaneous:
Supporting Collateral:
Legacy Collaterals:
A member of the Microchip's SAM4L family of flash microcontrollers based on the ARM® Cortex®-M4 processor, the ATSAM4LC8C delivers the lowest power in active mode (90uA/MHz) as well as sleep mode (1.5uA) and the shortest wake-up time (down to 1.5us) in a Cortex-M4-based device.
Along with 512KB of embedded flash memory, the device features an LCD controller, hardware cryptography, USB host and device, peripheral event system, SleepWalking intelligent peripherals, and built-in security, including 128-bit Advanced Encryption Standard (AES).
Integrated Microchip QTouch technology makes it easy to bring capacitive touch functionality to your hardware.
- ARM Cortex-M4 running at up to 48 MHz
- Memory Protection Unit (MPU)
- DSP Instructions, Thumb®-2 instruction set
- 512 Kbytes embedded Flash, 0 wait-state capability up to 24MHz
- 64 Kbytes embedded SRAM
- Embedded voltage regulator for single-supply operation
- Two Power-on-Reset and Two Brown-out Detectors (BOD)
- Quartz or ceramic resonator oscillators: 0.6 to 30MHz main power with Failure Detection and low power 32.768 kHz for RTC or device clock
- High-precision 8/12 MHz factory-trimmed internal RC oscillator
- Slow clock internal RC oscillator as permanent low-power mode device clock
- High speed 80MHz internal RC oscillator
- Low power 32kHz internal RC oscillator
- PLL up to 240MHz for device clock and for USB
- Digital Frequency Locked Loop (DFLL) with wide input range
- Up to 16 peripheral DMA (PDCA) channels
- Active mode down to 90μA/MHz with configurable voltage scaling
- High performance and efficiency: 28 coremark/mA
- Wait mode down to 3μA with fast wake-up time (<1.5μs) supporting SleepWalking
- Full RAM and Logic Retention mode down to 1.5μA with fast wake-up time (<1.5μs)
- Ultra low power Backup mode with/without RTC down to 1.5/0.9μA
- 100-lead LQFP, 14 x 14 mm, pitch 0.5 mm
- 100-lead VFBGA, 7x7 mm, pitch 0.65 mm
- Industrial (-40° C to +85° C)
- USB 2.0 Device and Embedded Host: 12 Mbps, up to 8 bidirectional Endpoints and Multi-packet Ping-pong Mode. On-Chip Transceiver
- One USART with ISO7816, IrDA®, RS-485, SPI, Manchester and LIN Mode
- Three USART with SPI Mode
- One PicoUART for extended UART wake-up capabilities in all sleep modes
- Liquid Crystal Display (LCD) Module with Capacity up to 40 Segments and up to 4 Common Terminals
- Windowed Watchdog Timer (WDT)
- Asynchronous Timer (AST) with Real-time Clock Capability, Counter or Calendar Mode Supported
- Frequency Meter (FREQM) for Accurate Measuring of Clock Frequency
- Six 16-bit Timer/Counter (TC) Channels with capture, waveform, compare and PWM mode
- One Master/Slave Serial Peripheral Interface (SPI) with Chip Select Signals
- Four Master and Two Slave Two-wire Interfaces (TWI), up to 3.4Mbit/s I2C-compatible
- Capacitive Touch Module (CATB) supporting up to 32 buttons
- Inter-IC Sound (IISC) Controller, Compliant with Inter-IC Sound (I2S) Specification
- Peripheral Event System for Direct Peripheral to Peripheral Communication
- Parallel Capture Module (PARC)
- Glue Logic Controller (GLOC)
- 75 I/O lines with external interrupt capability (edge or level sensitivity), debouncing, glitch filtering and slew-rate control
- Six High-drive I/O Pins
- One 16-channel ADC 300Ksps (ADC) with up to 12 Bits Resolution
- One DAC 500Ksps (DACC) with up to 10 Bits Resolution
- Four Analog Comparators (ACIFC) with Optional Window Detection
- Audio Bitstream DAC (ABDACB) Suitable for Stereo Audio
- One Advanced Encryption System (AES) with 128-bit key length
- 32-bit Cyclic Redundancy Check Calculation Unit (CRCCU)
- Random generator (TRNG)
- Serial Wire/JTAG Debug Port(SWJ-DP)
- Debug access to all memories and registers in the system, including Cortex-M4 register bank when the core is running, halted, or held in reset.
- Serial Wire Debug Port (SW-DP) and Serial Wire JTAG Debug Port (SWJ-DP) debug access.
- Flash Patch and Breakpoint (FPB) unit for implementing breakpoints and code patches.
- Data Watchpoint and Trace (DWT) unit for implementing watchpoints, data tracing, and system profiling.
- Instrumentation Trace Macrocell (ITM) for support of printf style debugging.
- IEEE1149.1 JTAG Boundary-scan on all digital pins.
- ASF-Atmel software Framework – SAM software development framework
- Integrated in the Atmel Studio IDE with a graphical user interface or available as standalone for GCC, IAR compilers.
- DMA support, Interrupt handlers Driver support
- USB, TCP/IP, Wi-Fi and Bluetooth, Numerous USB classes, DHCP and Wi-Fi encryption Stacks
- RTOS integration, FreeRTOS is a core component
