Microchip ATR7032-PVPW

Manufacturer No:

ATR7032-PVPW

Manufacturer:

Microchip

Package:

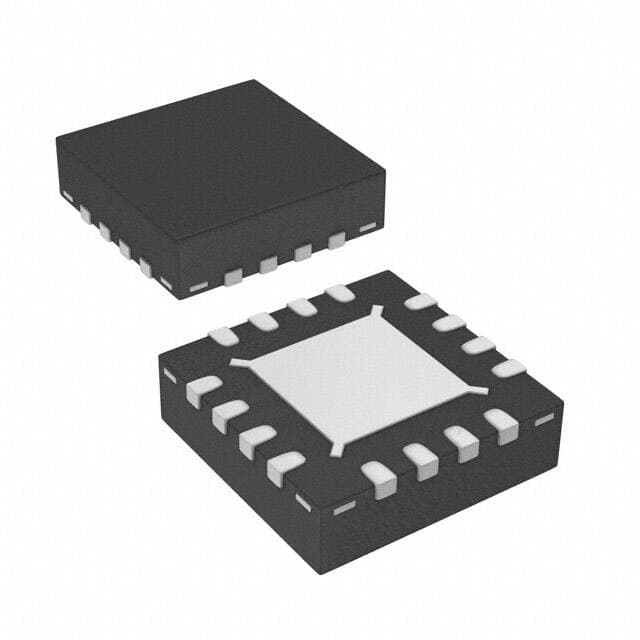

16-VFQFN Exposed Pad

Description:

32dB ISM, 802.11b/g/WiFi, WLAN Tape & Reel (TR) 2.4GHz~2.5GHz 2.7V~3.6V P1dB:27dBm 90mA Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATR7032-PVPW information

Microchip ATR7032-PVPW technical specifications, attributes, parameters and parts with similar specifications to Microchip ATR7032-PVPW.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-VFQFN Exposed Pad

Number of Pins
16

Supplier Device Package
16-QFN (3x3)

Packaging
Tape & Reel (TR)

Published
1997

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Voltage - Supply
2.7V~3.6V

Frequency
2.4GHz~2.5GHz

Operating Supply Voltage
3V

Number of Channels
1

Max Supply Voltage
3.6V

Min Supply Voltage
2.7V

Test Frequency
2.45GHz

Operating Supply Current
90mA

Current - Supply
90mA

Gain
32dB

Max Frequency
2.5GHz

RF Type
ISM, 802.11b/g/WiFi, WLAN

P1dB
27dBm

Length
3mm

Width
3mm

Thickness
900?m

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Microchip ATR7032-PVPW.

ATR7032-PVPW Overview

Input RF type ISM, 802.11b/g/WiFi, WLAN of the RF amplifier.High reliability is achieved using advanced RF Amp' packaging Tape & Reel (TR).Shipping overseas is convenient thanks to the RF power Amplifier's packaging in 16-VFQFN Exposed Pad.The mount Amplifiers RF should be done in the direction of Surface Mount.It is possible to supply 2.7V~3.6V volts to the Amplifiers RF.For it to perform as expected, the supply current must be in the range of 90mA.16 pins are on the high power RF Amplifier.It is powered by a RF Amplifiers' current of 90mA which is used for its operation.At a temperature around 85°C degrees Celsius, RF power Amplifier shouldbe running.

ATR7032-PVPW Features

RF Type ISM, 802.11b/g/WiFi, WLAN
2.7V~3.6V voltage
16 pins
90mA current

ATR7032-PVPW Applications

There are a lot of Microchip Technology
ATR7032-PVPW RF Amplifiers applications.

Avionics
GPS
GLONASS
BeiDou
Galileo
Wireless communications
ISM applications
Wireless infrastructure
Automated test equipment
RF/IF gain control
