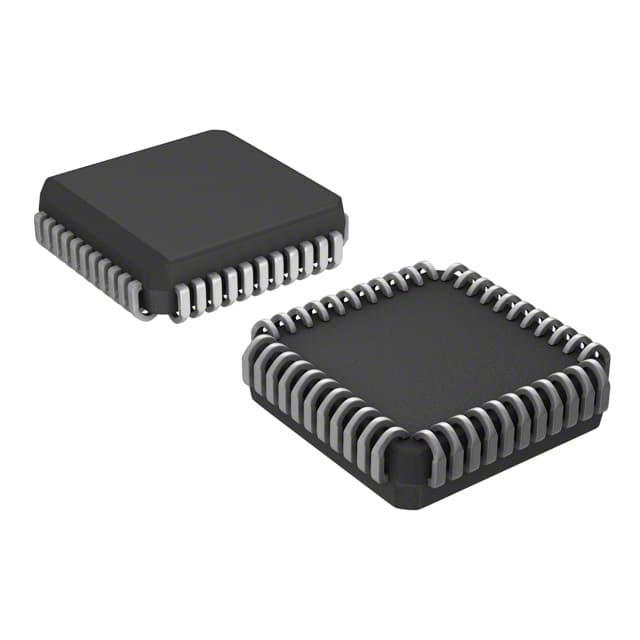

Microchip ATMEGA8535L-8JUR
Microchip ATMEGA8535L-8JUR

Microchip ATMEGA8535L-8JUR

Manufacturer No:

ATMEGA8535L-8JUR

Manufacturer:

Microchip

Package:

44-LCC (J-Lead)

Description:

8KB 4K x 16 FLASH AVR 8-Bit Microcontroller AVR® ATmega Series ATMEGA8535 44 Pin 8MHz 3V 44-LCC (J-Lead)

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATMEGA8535L-8JUR information

Microchip ATMEGA8535L-8JUR technical specifications, attributes, parameters and parts with similar specifications to Microchip ATMEGA8535L-8JUR.

  • Type
  • Parameter
  • Factory Lead Time
  • 4 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 44-LCC (J-Lead)
  • Surface Mount
  • YES
  • Number of Pins
  • 44
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Tape & Reel (TR)
  • Series
  • AVR® ATmega
  • Published
  • 2000
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 2 (1 Year)
  • Number of Terminations
  • 44
  • Technology
  • CMOS
  • Terminal Position
  • QUAD
  • Terminal Form
  • J BEND
  • Supply Voltage
  • 3V
  • Terminal Pitch
  • 1.27mm
  • Frequency
  • 8MHz
  • Base Part Number
  • ATMEGA8535
  • Supply Voltage-Max (Vsup)
  • 5.5V
  • Supply Voltage-Min (Vsup)
  • 2.7V
  • Interface
  • I2C, SPI, UART, USART
  • Memory Size
  • 8kB
  • Number of I/O
  • 32
  • RAM Size
  • 512 x 8
  • Voltage - Supply (Vcc/Vdd)
  • 2.7V~5.5V
  • uPs/uCs/Peripheral ICs Type
  • MICROCONTROLLER, RISC
  • Core Processor
  • AVR
  • Peripherals
  • Brown-out Detect/Reset, POR, PWM, WDT
  • Program Memory Type
  • FLASH
  • Core Size
  • 8-Bit
  • Program Memory Size
  • 8KB 4K x 16
  • Connectivity
  • I2C, SPI, UART/USART
  • Bit Size
  • 8
  • Data Converter
  • A/D 8x10b
  • Has ADC
  • YES
  • DMA Channels
  • NO
  • Data Bus Width
  • 8b
  • PWM Channels
  • YES
  • DAC Channels
  • NO
  • EEPROM Size
  • 512 x 8
  • On Chip Program ROM Width
  • 8
  • Screening Level
  • TS 16949
  • Length
  • 16.586mm
  • Height Seated (Max)
  • 4.572mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Microchip ATMEGA8535L-8JUR.

Datasheets:

PCN Design/Specification:

PCN Packaging:

ConflictMineralStatement:

ATMEGA8535L-8JUR Overview


44-LCC (J-Lead)-packages are available. There are 32 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 8-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~85°C TA for this Microcontroller. An electrical component of this type belongs to the AVR® ATmega series. This program memory has a size of 8KB 4K x 16, which indicates what the size of the program memory is. AVR Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER, RISC power supply/socket/peripheral ICs category. This chip has a total of 44 terminations on MCU chip. You get a 8-bit size. This Microcontroller chip is powered by 3V volts. There are NO DMA channels on this Microcontroller chip. The part has a memory size of 8kB. The base part number ATMEGA8535 provides alternatives. This device is extremely efficient when operated at a frequency of 8MHz. Using the PWM channel YES, the device works with the motor. In this chip, 44 pins can be accessed.
