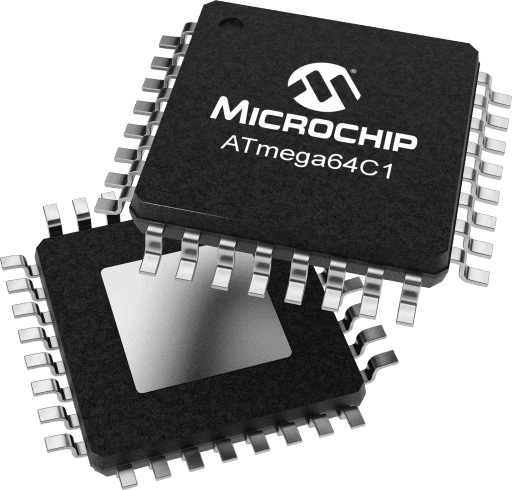

Microchip ATMEGA64C1-15AZ

Manufacturer No:

ATMEGA64C1-15AZ

Manufacturer:

Microchip

Package:

32-TQFP

Description:

ATmega64C1, CAN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATMEGA64C1-15AZ information

Microchip ATMEGA64C1-15AZ technical specifications, attributes, parameters and parts with similar specifications to Microchip ATMEGA64C1-15AZ.

Type
Parameter

Program Memory Size (KB)
64

RAM (bytes)
2

Data EEPROM (bytes)
4096

Pin Count
32

Operation Voltage Max.(V)
5.5

Operation Voltage Min.(V)
2.7

Max ADC Resolution (bits)
0

ADC Channels
0

Zero Cross Detect
False

Number of Comparators
0

Stand alone PWM
0

Numerically Controlled Oscillator (NCO)
0

Data Signal Modulator (DSM)
0

Download datasheets and manufacturer documentation for Microchip ATMEGA64C1-15AZ.

Supporting Collateral:

d18ba08759892101ba998745466b4537.pdf

Data Sheets:

157bccb4aaa40470d737b5796fa8d80f.pdf

db5da7c246cd8bf1bffa65be254d1f9a.pdf

085fd01ac14847c1bf9bc9c4c329a7c0.pdf

The high-performance, low-power Microchip 8-bit AVR® RISC-based microcontroller combines 64 KB ISP Flash memory with read-while-write capabilities, 2 KB EEPROM, 4 KB SRAM, 27 general purpose I/O lines, 32 general purpose working registers, two flexible timer/counters with compare modes and PWM, one UART with HW LIN, an 11-channel 10-bit A/D converter with two differential programmable gain input stages, a 10-bit D/A converter, a programmable watchdog timer with an internal individual oscillator, SPI serial port, an on-chip debug system, and four software selectable power saving modes. The device operates between 2.7-5.5 volts.

By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching one MIPS per MHz, balancing power consumption and processing speed.
