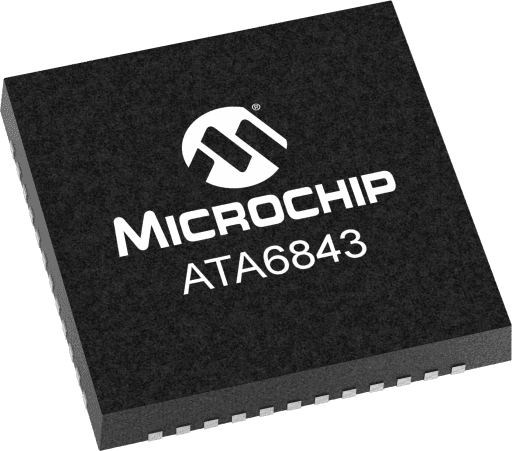

Microchip ATA6843-PLQW-1
Microchip ATA6843-PLQW-1

Microchip ATA6843-PLQW-1

Manufacturer No:

ATA6843-PLQW-1

Manufacturer:

Microchip

Package:

48-VFQFN Exposed Pad

Description:

ATA6843

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATA6843-PLQW-1 information

Microchip ATA6843-PLQW-1 technical specifications, attributes, parameters and parts with similar specifications to Microchip ATA6843-PLQW-1.

  • Type
  • Parameter
  • Integrated LIN TR/RX
  • Yes
  • Integrated Op Amps
  • 0
  • Max. Ron per Output (Ω)
  • 20
  • Motor Control Methods
  • Direct PWM Input
  • Motor Speed Output
  • No
  • Integrated Voltage Regs
  • 1
  • Supply Voltage Max (V)
  • 32
  • Supply Voltage Min (V)
  • 5.5
  • Output Type
  • Gate Driver
  • TempRange Max
  • 125
  • TempRange Min
  • -40
  • VRCurrent
  • 100

Download datasheets and manufacturer documentation for Microchip ATA6843-PLQW-1.

Brochures:

Data Sheets:

Application Notes:

Supporting Collateral:

Legacy Collaterals:

System basis chip for three-phase brushless DC motor controllers designed in the Microchip 0.18-µm SOI technology SMART-I.S.™. The chip forms a BLDC motor control unit for automotive applications in combination with a microcontroller and six discrete power MOSFETs. Works in extended supply voltage range from 5.25V up to 32V.It features a T junction of up to 150°C. Its circuits provide a 3.3V/5V linear regulator and a window watchdog. It includes various control and protection functions like overvoltage and over-temperature protection, adjustable short circuit detection, undervoltage management and coast function. Its drivers fulfill maximum safety requirements and offer a high integration level to save cost and space.

  • Broad operation voltage range from 5.25V to 32V
  • ATA6843 temperature range TJ = 150°C
  • Direct driving of six external NMOS transistors with a maximum switching frequency of 50kHz
  • Integrated charge pump to provide gate voltages for high-side drivers and to supply the gate of the external battery reverse protection NMOS
  • Built-in 5V/3.3V voltage regulator with current limitation
  • Reset signal for the microcontroller
  • Sleep Mode with supply current of typically < 45μA
  • Wake-up via LIN bus or high voltage input
  • Programmable window watchdog
  • Battery overvoltage protection and battery under voltage management
  • Overtemperature warning and protection (shutdown)
  • Jump start compatible
  • LIN transceiver conformal to LIN 2.1 and SAEJ2602-2 with outstanding EMC and ESD performance
  • QFN48 package 7mm x 7mm
