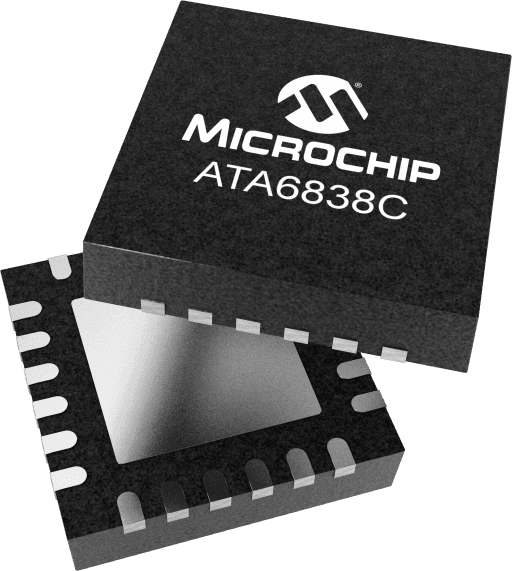

Microchip ATA6838C-PXQW-1
Microchip ATA6838C-PXQW-1

Microchip ATA6838C-PXQW-1

Manufacturer No:

ATA6838C-PXQW-1

Manufacturer:

Microchip

Package:

24-VQFN Exposed Pad

Description:

ATA6838C

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATA6838C-PXQW-1 information

Microchip ATA6838C-PXQW-1 technical specifications, attributes, parameters and parts with similar specifications to Microchip ATA6838C-PXQW-1.

  • Type
  • Parameter
  • Integrated LIN TR/RX
  • No
  • Integrated Op Amps
  • 0
  • Max. Ron per Output (Ω)
  • 1.8
  • Motor Control Methods
  • SPI
  • Motor Speed Output
  • No
  • Integrated Voltage Regs
  • 0
  • Supply Voltage Max (V)
  • 40
  • Supply Voltage Min (V)
  • 7
  • Output Type
  • Integrated Driver
  • TempRange Max
  • 125
  • TempRange Min
  • -40

Download datasheets and manufacturer documentation for Microchip ATA6838C-PXQW-1.

Brochures:

Data Sheets:

Application Notes:

Supporting Collateral:

Legacy Collaterals:

A fully protected hex half-bridge driver controlling up to six different loads by microcontroller in automotive and industrial applications. It is designed in smart power SOI technology. Each of the six high-side and six low-side drivers is capable of driving currents up to 950mA. The drivers are internally connected to form six half-bridges and can be controlled separately from a standard serial data interface to combine loads from bulbs, resistors, capacitors, and inductors. The IC supports the application of H-bridges to drive DC motors.

  • Six half-bridge outputs formed by six high-side and six low-side drivers
  • Capable of switching all kinds of loads (such as DC motors, bulbs, resistors, capacitors and inductors)
  • RDSon typically 1.0Ω at 25°C, maximum 1.8Ω at 150°C
  • Up to 950-mA output current
  • Very low total quiescent current IS < 2μA in standby mode
  • Outputs short-circuit protected
  • Over temperature pre-warning and protection
  • Under voltage protection
  • Various diagnosis functions such as shorted output, open load, over temperature and power supply fail
  • Serial data interface
  • Operation voltage up to 40V
  • Daisy chaining possible
  • Serial interface 5V compatible, up to 2MHz clock frequency
  • QFN24 5mm x 5mm power package
