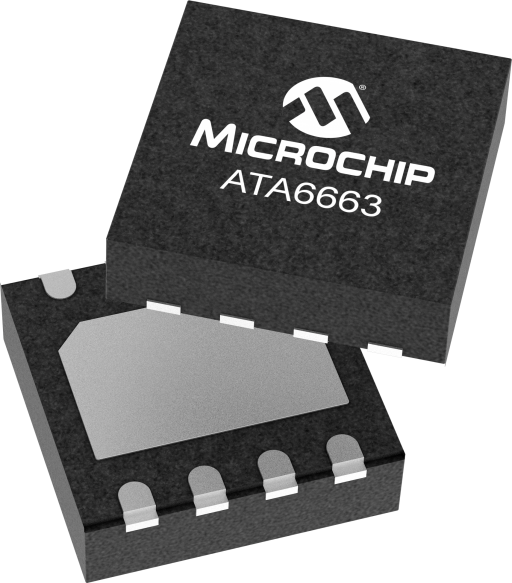

Microchip ATA6663-FAQW-1

Manufacturer No:

ATA6663-FAQW-1

Manufacturer:

Microchip

Package:

8-VDFN Exposed Pad

Description:

LIN Transceiver

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATA6663-FAQW-1 information

Microchip ATA6663-FAQW-1 technical specifications, attributes, parameters and parts with similar specifications to Microchip ATA6663-FAQW-1.

Type
Parameter

Baud Rate Max [kbit/s]
20

TempRange [°C] Max
125

Thermal Shutdown
Yes

Vin Max (V)
28

Vin Min (V)
5

Wake Pin
Yes

Watchdog
No

Wettable Flanks
Yes

Integrated VREG
No

Download datasheets and manufacturer documentation for Microchip ATA6663-FAQW-1.

Fully integrated Single-LIN transceiver complying to LIN specification 2.0, 2.1 and SAEJ2602 with advanced EMI and ESD performance and TXD-dominant time-out function. The device is designed to handle low-speed data communication (down to 1 Kbaud) in vehicles and in convenience electronics. Improved slope control at the LIN bus ensures secure data communication at up to 20Kbaud with an RC oscillator for protocol handling. A sleep mode guarantees minimal current consumption, even in the case of a floating bus line or a short circuit on the LIN bus to GND. The extra-small DFN8 package with only 3mm x 3mm with wettable flanks that make solder joints visible and thus enables the use of automated optical inspection (AOI) tools.
