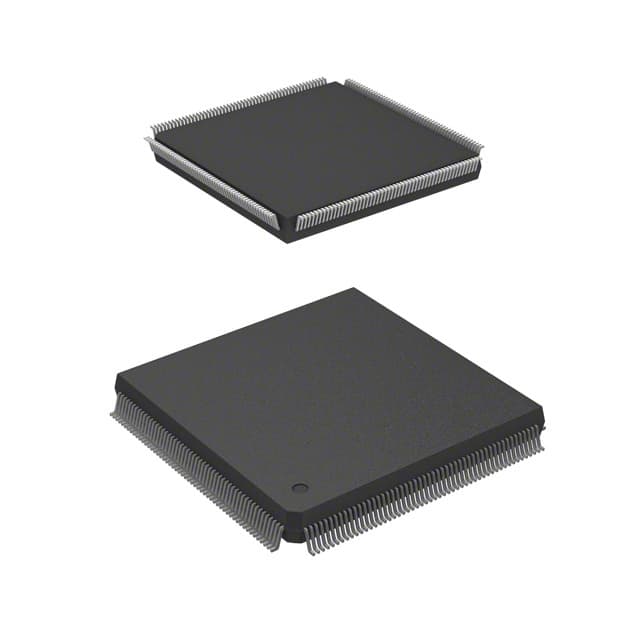

Microchip AT91SAM9XE512-QU
Microchip AT91SAM9XE512-QU

Microchip AT91SAM9XE512-QU

Manufacturer No:

AT91SAM9XE512-QU

Manufacturer:

Microchip

Package:

208-BFQFP

Description:

ARM926EJ-S Microprocessor SAM9XE Series AT91SAM9XE512 208-Pin 180MHz 208-BFQFP

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AT91SAM9XE512-QU information

Microchip AT91SAM9XE512-QU technical specifications, attributes, parameters and parts with similar specifications to Microchip AT91SAM9XE512-QU.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Package / Case
  • 208-BFQFP
  • Number of Pins
  • 208
  • Supplier Device Package
  • 208-PQFP (28x28)
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Tray
  • Series
  • SAM9XE
  • Published
  • 1997
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Frequency
  • 180MHz
  • Base Part Number
  • AT91SAM9XE512
  • Operating Supply Voltage
  • 3.3V
  • Interface
  • 2-Wire, EBI/EMI, Ethernet, I2C, I2S, MMC, SPI, UART, USART, USB
  • Max Supply Voltage
  • 3.6V
  • Min Supply Voltage
  • 1.65V
  • Memory Size
  • 32kB
  • Oscillator Type
  • Internal
  • Number of I/O
  • 96
  • Speed
  • 180MHz
  • RAM Size
  • 32kB
  • Memory Type
  • FLASH, ROM
  • Peripherals
  • Brown-out Detect/Reset, POR, PWM, WDT
  • Watchdog Timer
  • Yes
  • Data Bus Width
  • 32b
  • Number of Timers/Counters
  • 6
  • Core Architecture
  • ARM
  • Max Frequency
  • 180MHz
  • Number of Programmable I/O
  • 96
  • Voltage - I/O
  • 1.8V 2.5V 3.3V
  • Number of UART Channels
  • 1
  • Number of ADC Channels
  • 4
  • Ethernet
  • 10/100Mbps
  • Number of Cores/Bus Width
  • 1 Core 32-Bit
  • Graphics Acceleration
  • No
  • RAM Controllers
  • SDRAM, SRAM
  • USB
  • USB 2.0 (3)
  • Additional Interfaces
  • EBI/EMI, I2C, ISI, MMC/SD/SDIO, SPI, SSC, UART/USART
  • Number of I2C Channels
  • 2
  • Display & Interface Controllers
  • LCD, Touchscreen
  • Number of SPI Channels
  • 2
  • Number of Ethernet Channels
  • 1
  • Height
  • 3.6mm
  • Length
  • 28mm
  • Width
  • 28mm

Download datasheets and manufacturer documentation for Microchip AT91SAM9XE512-QU.

Datasheets:

PCN Packaging:

RohsStatement:

AT91SAM9XE512-QU Description


The AT91SAM9XE512-QU is based on the integration of an ARM926EJ-S processor with fast ROM and RAM, 128, 256 or 512 Kbytes of Flash and a wide range of peripherals.



AT91SAM9XE512-QU Features


  • Incorporates the ARM926EJ-S? ARM® Thumb® Processor

? DSP instruction Extensions, ARM Jazelle® Technology for Java® Acceleration

? 8 Kbytes Data Cache, 16 Kbytes Instruction Cache, Write Buffer

? 200 MIPS at 180 MHz

? Memory Management Unit

? EmbeddedICE?, Debug Communication Channel Support

  • Additional Embedded Memories

? One 32-Kbyte Internal ROM, Single-cycle Access at Maximum Matrix Speed

? One 32-Kbyte (for AT91SAM9XE256 and AT91SAM9XE512) or 16-Kbyte (for AT91SAM9XE128) Internal SRAM, Single-cycle Access at Maximum Matrix Speed

? 128, 256 or 512 Kbytes of Internal High-speed Flash for AT91SAM9XE128,

  • AT91SAM9XE256 or AT91SAM9XE512 Respectively. Organized in 256, 512 or 1024

  • Pages of 512 Bytes Respectively



AT91SAM9XE512-QU Applications


  • Industrial

  • General Uses
