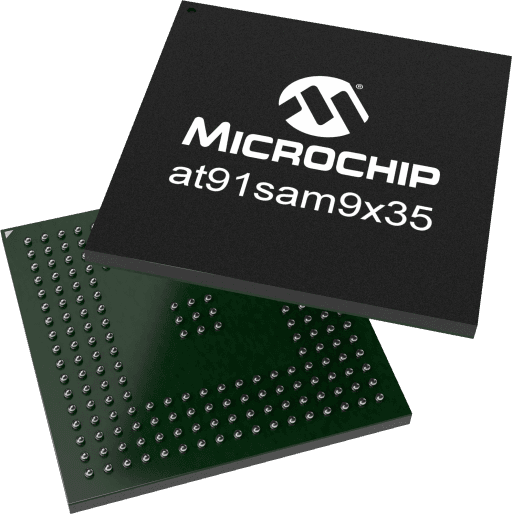

Microchip AT91SAM9X35-CU-999

Manufacturer No:

AT91SAM9X35-CU-999

Manufacturer:

Microchip

Package:

217-LFBGA

Description:

AT91SAM9X35

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AT91SAM9X35-CU-999 information

Microchip AT91SAM9X35-CU-999 technical specifications, attributes, parameters and parts with similar specifications to Microchip AT91SAM9X35-CU-999.

Type
Parameter

ADC Resolution (bits)
10

ADC Sampling Rate (ksps)
440

Anti-Tampering Inputs
0

Secure Bootloader
No

CAN/CAN-FD
2

Type of CAN module Max A (ampere)
CAN

Camera Interface
No

Int. DRAM (MB)
0

Ext. DRAM Bus (bits)
16

DRAM Memory Interface
SDRAM/LPSDRAM/LPDDR/DDR2

Int. DRAM Type
NONE

Number of EBIs
1

ECC bits on NAND interface
24

Number of Ethernet Ports
1

Graphic LCD Interface
24-bit

Hardware RTCC/RTC
Yes

I/O Pins Max
105

Secure Key Storage (bits)
0

L1 Cache Memory (Data) (KB)
16

L1 Cache Memory (Instructions) (KB)
16

CPU Speed Max MHz (megahertz)
400

NAND Interface
Yes

Operation Voltage Min.(V)
0.9

Internal Oscillator
32KHz

Part Family
SAM9GX

QSPI
0

RAM (KB)
32

SDIO/SD-CARD/eMMC
2

Temp. Sensor
No

Watch Dog Timer
Yes

Direct Memory Access (DMA) Channels
20

Graphics Controller/GPU
Yes

Quadrature Encoder Interface
0

ADC Channels
12

Pincount
217

Crypto Engine
No

TempRange Min
-40

TempRange Max
85

Download datasheets and manufacturer documentation for Microchip AT91SAM9X35-CU-999.

The Microchip SMART SAM9X35 is a highly-integrated 400 MHz ARM926-based embedded MPU, featuring a rich set of connectivity and user interface peripherals, including Ethernet MAC and dual CAN. The graphics LCD controller features 4-layer overlay and 2D acceleration (picture-in-picture, alpha-blending, scaling, rotation, color conversion), and a 10-bit ADC that supports 4- or 5-wire resistive touchscreen panels. Additional interfaces include a soft modem supporting exclusively the Conexant SmartDAA line driver, High Speed USB Device and Host, Full Speed USB Host, two HS SDCard/SDIO/MMC interfaces, USARTs, SPIs, I²S and TWIs. A multi-layer bus matrix associated with 2 x 8 central DMA channels as well as dedicated DMAs support the high-speed connectivity. The external bus interface incorporates controllers for 8-bank DDR2/LPDDR, SDRAM/LPSDRAM, static memories, and specific circuitry for MLC/SLC NAND Flash with integrated ECC. The SAM9X35 is available in a 217-ball BGA package with 0.8mm ball pitch.

Please consider using our newest SAM9 series such as the SAM9X60 or SAM9X7, which provides more advanced features and enhanced performance.
