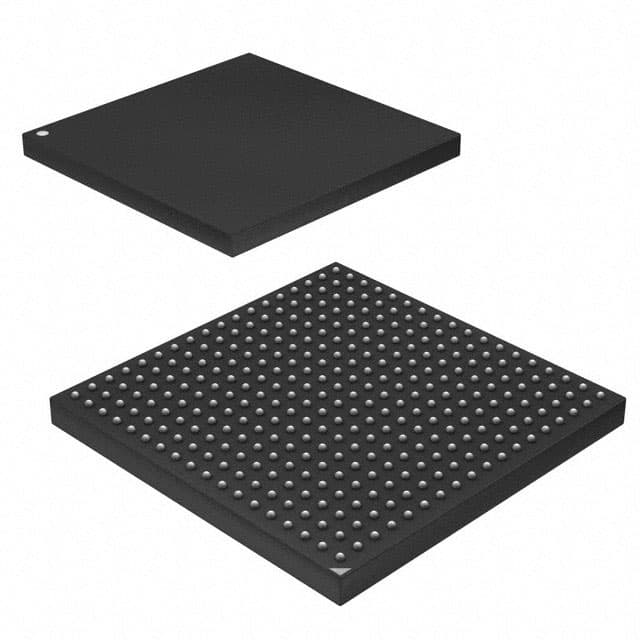

Microchip AT91SAM9G45B-CU

Manufacturer No:

AT91SAM9G45B-CU

Manufacturer:

Microchip

Package:

324-TFBGA

Description:

AT91SAM9G45

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AT91SAM9G45B-CU information

Microchip AT91SAM9G45B-CU technical specifications, attributes, parameters and parts with similar specifications to Microchip AT91SAM9G45B-CU.

Type
Parameter

ADC Resolution (bits)
10

ADC Sampling Rate (ksps)
440

Anti-Tampering Inputs
0

Secure Bootloader
No

CAN/CAN-FD
0

Type of CAN module Max A (ampere)
None

Camera Interface
Yes

Int. DRAM (MB)
0

Ext. DRAM Bus (bits)
16

DRAM Memory Interface
SDRAM/LPSDRAM/LPDDR/DDR2

Number of EBIs
2

ECC bits on NAND interface
1

Graphic LCD Interface
24-bit

Hardware RTCC/RTC
Yes

I/O Pins Max
160

Secure Key Storage (bits)
0

L1 Cache Memory (Data) (KB)
32

L1 Cache Memory (Instructions) (KB)
32

CPU Speed Max MHz (megahertz)
400

NAND Interface
Yes

Operation Voltage Max.(V)
1.1

Operation Voltage Min.(V)
0.9

Part Family
SAM9GM

QSPI
0

SDIO/SD-CARD/eMMC
2

Temp. Sensor
No

Watch Dog Timer
Yes

Direct Memory Access (DMA) Channels
37

Graphics Controller/GPU
Yes

Quadrature Encoder Interface
0

ADC Channels
8

Pincount
324

Crypto Engine
No

TempRange Min
-40

TempRange Max
85

Download datasheets and manufacturer documentation for Microchip AT91SAM9G45B-CU.

The Microchip's ARM®-based SAM9G45 is a 400MHz ARM926 based embedded microprocessor with DDR2 and LPDDR support, a wide range of connectivity and user interface peripherals, as well as a dual external bus interface. The multi-layer bus architecture is associated with 35 DMA channels, 64KB of SRAM that can be configured as TCM, and dual bus interface that sustains the high bandwidth required by the processor and its high-speed peripherals. The SAM9G45 integrates multiple communication interfaces such as High Speed USB host and device with transceivers, 10/100 Mbps Ethernet controller and high-speed SDIO/MMC interface. It also comes with an LCD controller supporting up to 1280x860 resolution, a resistive touchscreen controller and a camera interface. The I/Os support 3.3V. The SAM9G45 is available in a BGA324 package with 0.8mm ball pitch.

Please consider using our newest SAM9 series such as the SAM9X60 or SAM9X7, which provides more advanced features and enhanced performance.
