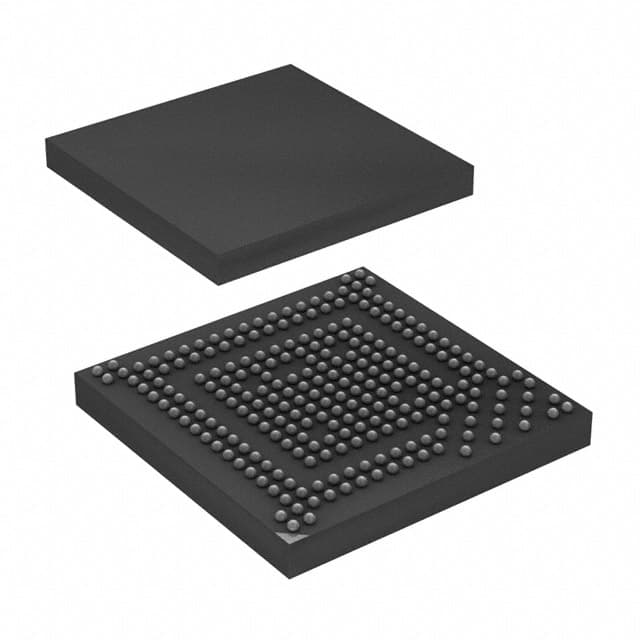

Microchip AT91SAM9G20B-CFU
Microchip AT91SAM9G20B-CFU

Microchip AT91SAM9G20B-CFU

Manufacturer No:

AT91SAM9G20B-CFU

Manufacturer:

Microchip

Package:

247-TFBGA

Description:

AT91SAM9G20

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AT91SAM9G20B-CFU information

Microchip AT91SAM9G20B-CFU technical specifications, attributes, parameters and parts with similar specifications to Microchip AT91SAM9G20B-CFU.

  • Type
  • Parameter
  • ADC Resolution (bits)
  • 10
  • ADC Sampling Rate (ksps)
  • 95
  • Anti-Tampering Inputs
  • 0
  • Secure Bootloader
  • No
  • CAN/CAN-FD
  • 0
  • Type of CAN module Max A (ampere)
  • None
  • Camera Interface
  • Yes
  • Int. DRAM (MB)
  • 0
  • Ext. DRAM Bus (bits)
  • 32
  • DRAM Memory Interface
  • SDRAM
  • Number of EBIs
  • 1
  • ECC bits on NAND interface
  • 1
  • FPU
  • No
  • Graphic LCD Interface
  • No
  • Hardware RTCC/RTC
  • Yes
  • I/O Pins Max
  • 96
  • Secure Key Storage (bits)
  • 0
  • L1 Cache Memory (Data) (KB)
  • 32
  • L1 Cache Memory (Instructions) (KB)
  • 32
  • LIN
  • No
  • CPU Speed Max MHz (megahertz)
  • 400
  • NAND Interface
  • Yes
  • Operation Voltage Max.(V)
  • 1.1
  • Operation Voltage Min.(V)
  • 0.9
  • Part Family
  • SAM9G20
  • QSPI
  • 0
  • SDIO/SD-CARD/eMMC
  • 2
  • Temp. Sensor
  • No
  • Watch Dog Timer
  • Yes
  • Direct Memory Access (DMA) Channels
  • 28
  • Graphics Controller/GPU
  • No
  • Quadrature Encoder Interface
  • 0
  • ADC Channels
  • 4
  • Pincount
  • 217
  • Crypto Engine
  • No
  • TempRange Min
  • -40
  • TempRange Max
  • 85

Download datasheets and manufacturer documentation for Microchip AT91SAM9G20B-CFU.

Legacy Collaterals:

User Guide:

Brochures:

Application Notes:

Data Sheets:

The Microchip's ARM®-based SAM9G20 is a 400MHz ARM926-based processor with an extensive range of communication peripherals. It embeds Full Speed USB host and device interfaces, a 10/100 Ethernet MAC and an image sensor interface, as well as standard peripherals such as a multimedia card interface (MCI), I2S, USART, master/slave SPIs, 16-bit timers, TWI and four-channel 10-bit ADC. The external bus interface features controllers for SDRAM and static memories including NAND flash and CompactFlash. The SAM9G20 is pin-to-pin compatible with the SAM9260. The device is available in 217-ball LFBGA and 247-pin TFBGA packages.

Please consider using our newest SAM9 series such as the SAM9X60 or SAM9X7, which provides more advanced features and enhanced performance.
