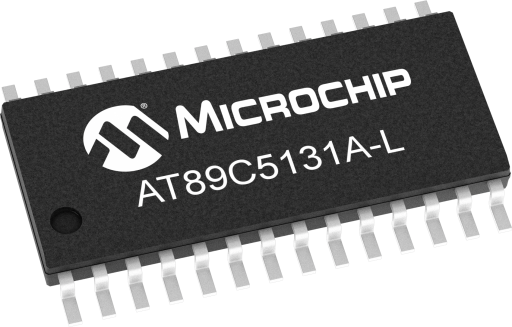

Microchip AT89C5131A-RDTUL

Manufacturer No:

AT89C5131A-RDTUL

Manufacturer:

Microchip

Package:

64-LQFP

Description:

AT89C5131A-L

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AT89C5131A-RDTUL information

Microchip AT89C5131A-RDTUL technical specifications, attributes, parameters and parts with similar specifications to Microchip AT89C5131A-RDTUL.

Type
Parameter

ADC Resolution Max
0

Number of Comparators
0

Data EEPROM (bytes)
1024

Data Signal Modulator (DSM)
0

Numerically Controlled Oscillator (NCO)
0

Operation Voltage Max.(V)
3.6

Operation Voltage Min.(V)
3

Program Memory Size (KB)
32

Low Power
No

ADC Channels
0

Pincount
64

Stand alone PWM
0

Zero Cross Detect
0

Download datasheets and manufacturer documentation for Microchip AT89C5131A-RDTUL.

High-performance flash version of the 80C51 single-chip 8-bit microcontroller with full speed USB functions. It features a full-speed USB module compatible with the USB specifications Version 1.1 and 2.0. The module integrates the USB transceivers with a 3.3V voltage regulator. The serial interface engine integrates digital phase locked loop and 48-MHz clock recovery. The module also contains USB event detection logic and FIFO buffers which support the mandatory control endpoint and up to six versatile endpoints with minimum software overhead.

This device retains the features of the Microchip 80C52 and adds 1024 bytes of on-chip ERAM, dual- data pointer, 16-bit up/down timer, programmable counter array, up to four programmable LED current sources, programmable hardware watchdog, and power-on reset.

Two software-selectable modes of reduced activity further reduce power consumption. In the idle mode the CPU is frozen while the timers, serial ports and interrupt system operate. In the power-down mode, the RAM is saved and the peripheral clock is frozen, but the device has full wake-up capability through USB events or external interrupts.
