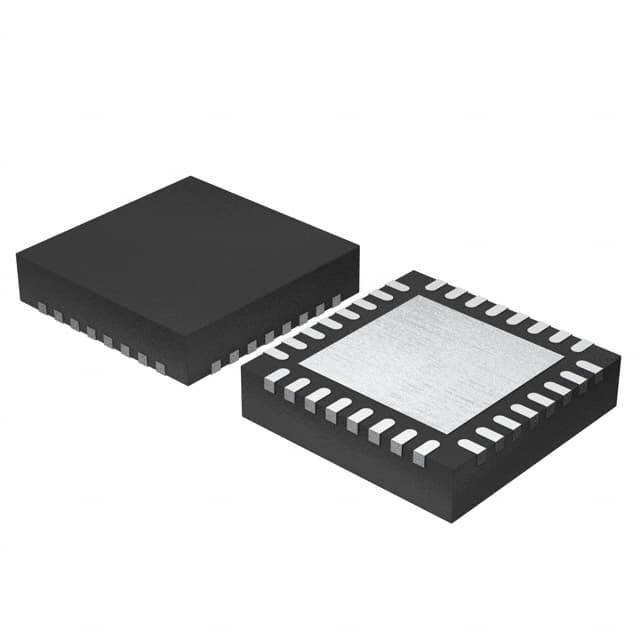

Microchip AT86RF212-ZUR

Manufacturer No:

AT86RF212-ZUR

Manufacturer:

Microchip

Package:

32-VFQFN Exposed Pad

Description:

TxRx + MCU 769MHz~935MHz 1.8V~3.6V SPI 1Mbps 8.7mA~9.2mA - Receiving 13mA~25mA - Transmitting DSSS, BPSK, O-QPSK 128B SRAM 32-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AT86RF212-ZUR information

Microchip AT86RF212-ZUR technical specifications, attributes, parameters and parts with similar specifications to Microchip AT86RF212-ZUR.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
32-VFQFN Exposed Pad

Number of Pins
32

Supplier Device Package
32-QFN (5x5)

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Published
2009

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Type
TxRx + MCU

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Voltage - Supply
1.8V~3.6V

Depth
5mm

Frequency
769MHz~935MHz

Voltage
3V

Interface
SPI

Max Supply Voltage
3.6V

Min Supply Voltage
1.7V

Memory Size
128B SRAM

Max Supply Current
25mA

Number of Timers/Counters
0

Protocol
6LoWPAN, Zigbee®

Power - Output
10dBm

Number of UART Channels
0

Sensitivity
-110dBm

Data Rate (Max)
1Mbps

Serial Interfaces
SPI

Current - Receiving
8.7mA~9.2mA

Current - Transmitting
13mA~25mA

Number of Receivers
1

Modulation
DSSS, BPSK, O-QPSK

Sensitivity (dBm)
-110 dBm

Number of Transmitters
1

Length
5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Microchip AT86RF212-ZUR.

AT86RF212-ZUR Overview

To save board space, RF transceiver IC uses the 32-VFQFN Exposed Pad package. Surface Mount is used to mount the RF transceiver's mounting.In this case, it emerges as a TxRx + MCU with transceiver RF's a high efficiency.The transceiver RF' packaging Tape & Reel (TR) provides high reliability.transceiver RF circuit boards with 32 pins are designed.Normally, the supply voltage (Vsup) for this RF transceiver should not be lower than 1.7V.The frequency of 769MHz~935MHz determines how RF transceiver operates .

AT86RF212-ZUR Features

32-VFQFN Exposed Pad package
Surface Mount for mounting
TxRx + MCU
Tape & Reel (TR) is used
32 pins
1.7V volts

AT86RF212-ZUR Applications

There are a lot of Microchip Technology
AT86RF212-ZUR RF Transceiver ICs applications.

Internet Radio
Industrial Controls
Chemical Sensors
Security Systems
M2M Communication
Remote Device Management
Low-power IoT applications
LoT applications
Power Amplifier (PA)
Low Noise Amplifier (LNA)
