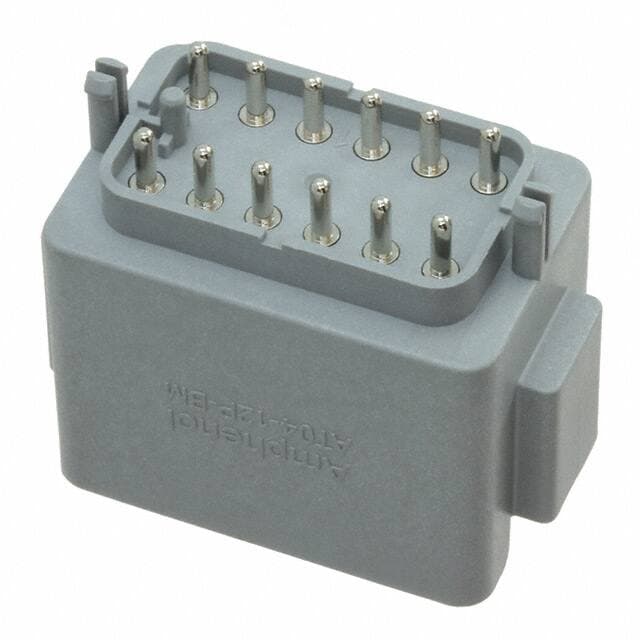

Amphenol AT04-12PA-BM03
Manufacturer No:
AT04-12PA-BM03
Manufacturer:
Package:
Description:
BoardLock? AT Series 2-Row Receptacle Solder Copper Alloy Tray Through Hole Nickel Thermoplastic 12-Position Board to Cable/Wire 0.835 21.21mm Height
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
AT04-12PA-BM03 information
Amphenol AT04-12PA-BM03 technical specifications, attributes, parameters and parts with similar specifications to Amphenol AT04-12PA-BM03.
- Type
- Parameter
- Factory Lead Time
- 12 Weeks
- Contact Material
- Copper Alloy
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Contact Shape
- Circular
- Insulation Material
- Thermoplastic
- Operating Temperature
- -55°C~125°C
- Packaging
- Tray
- Series
- BoardLock? AT
- Published
- 2015
- Feature
- Board Lock
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Solder
- ECCN Code
- EAR99
- Connector Type
- Receptacle
- Number of Positions
- 12
- Applications
- Automotive, General Purpose, Industrial
- Number of Rows
- 2
- Gender
- Female
- HTS Code
- 8536.69.40.30
- Fastening Type
- Latch Holder
- Contact Finish - Mating
- Nickel
- Contact Type
- Male Pin
- Ingress Protection
- IP67
- Insulation Height
- 0.835 21.21mm
- Style
- Board to Cable/Wire
- Number of Positions Loaded
- All
- Reach Compliance Code
- unknown
- Insulation Color
- Gray
- Shrouding
- Shrouded - 4 Wall
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Amphenol AT04-12PA-BM03.
AT04-12PA-BM03 Overview
The packaging contains Receptacle.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tray.Product number BoardLock? AT belongs to the BoardLock? AT Series.In addition to Automotive, General Purpose, Industrial, there are other possible applications for the device.In many ways, it is more powerful due to its Board Lock feature.There is a Through Hole mount on the part.This device operates at a temperature of -55°C~125°C.
AT04-12PA-BM03 Features
BoardLock? AT series
AT04-12PA-BM03 Applications
There are a lot of Amphenol Sine Systems Corp
AT04-12PA-BM03 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
