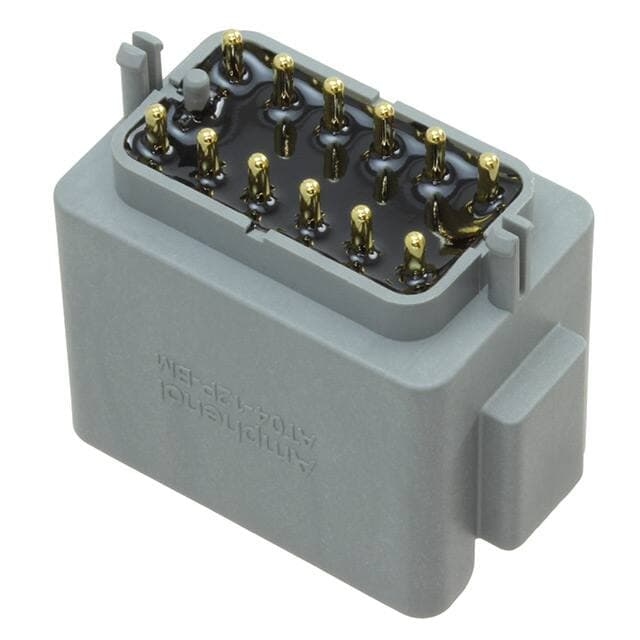

Amphenol AT04-12PA-BM02
Amphenol AT04-12PA-BM02

Amphenol AT04-12PA-BM02

Manufacturer No:

AT04-12PA-BM02

Manufacturer:

Amphenol

Package:

Description:

BoardLock? AT Series 2-Row Receptacle Solder Copper Alloy Tray Through Hole Gold Thermoplastic 12-Position Board to Cable/Wire 0.835 21.21mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AT04-12PA-BM02 information

Amphenol AT04-12PA-BM02 technical specifications, attributes, parameters and parts with similar specifications to Amphenol AT04-12PA-BM02.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Contact Material
  • Copper Alloy
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Contact Shape
  • Circular
  • Insulation Material
  • Thermoplastic
  • Operating Temperature
  • -55°C~125°C
  • Packaging
  • Tray
  • Series
  • BoardLock? AT
  • Published
  • 2015
  • Feature
  • Board Lock, Potting Wall
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Receptacle
  • Number of Positions
  • 12
  • Applications
  • Automotive, General Purpose, Industrial
  • Number of Rows
  • 2
  • Gender
  • Female
  • HTS Code
  • 8536.69.40.30
  • Fastening Type
  • Latch Holder
  • Contact Finish - Mating
  • Gold
  • Filter Feature
  • NO
  • Mixed Contacts
  • NO
  • Current Rating (Amps)
  • 13A
  • Total Number of Contacts
  • 12
  • Ingress Protection
  • IP67
  • Insulation Height
  • 0.835 21.21mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Reach Compliance Code
  • unknown
  • Insulation Color
  • Gray
  • Body Length or Diameter
  • 1.594 inch
  • Shrouding
  • Shrouded - 4 Wall
  • Mating Information
  • MULTIPLE MATING PARTS AVAILABLE
  • Body Breadth
  • 0.874 inch
  • Empty Shell
  • NO
  • Body Depth
  • 1.165 inch
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Amphenol AT04-12PA-BM02.

Datasheets:

AT04-12PA-BM02 Overview


A Receptacle package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tray case.It is part of the BoardLock? AT Series of products.It is possible for the device to be used for the application Automotive, General Purpose, Industrial.A number of features make it more powerful because of its Board Lock, Potting Wall feature.Through Hole mounts the part.There is no operating temperature for the device.

AT04-12PA-BM02 Features


BoardLock? AT series


AT04-12PA-BM02 Applications


There are a lot of Amphenol Sine Systems Corp
AT04-12PA-BM02 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
