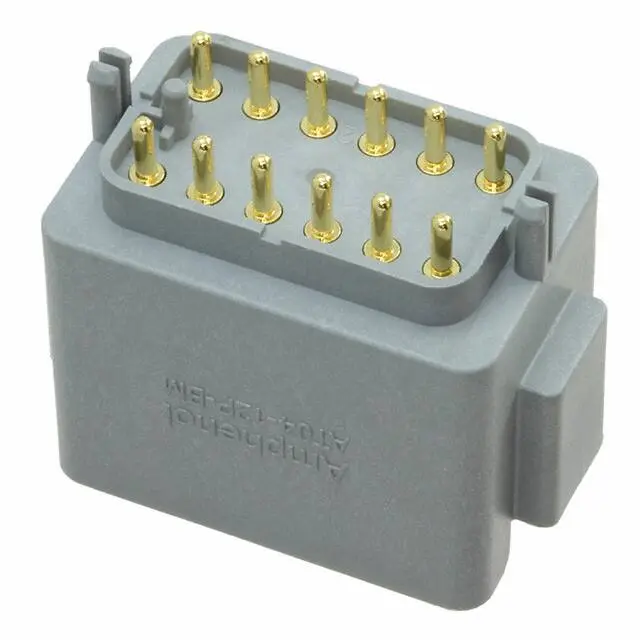

Amphenol AT04-12PA-BM01
Manufacturer No:
AT04-12PA-BM01
Manufacturer:
Package:
Description:
BoardLock? AT Series 2-Row Receptacle Solder Copper Alloy Tray Through Hole Gold Thermoplastic 12-Position Board to Cable/Wire 0.835 21.21mm Height
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
AT04-12PA-BM01 information
Amphenol AT04-12PA-BM01 technical specifications, attributes, parameters and parts with similar specifications to Amphenol AT04-12PA-BM01.
- Type
- Parameter
- Factory Lead Time
- 12 Weeks
- Contact Material
- Copper Alloy
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Contact Shape
- Circular
- Insulation Material
- Thermoplastic
- Operating Temperature
- -55°C~125°C
- Packaging
- Tray
- Series
- BoardLock? AT
- Published
- 2015
- Feature
- Board Lock
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Solder
- ECCN Code
- EAR99
- Connector Type
- Receptacle
- Number of Positions
- 12
- Applications
- Automotive, General Purpose, Industrial
- Number of Rows
- 2
- Gender
- Female
- HTS Code
- 8536.69.40.30
- Fastening Type
- Latch Holder
- Contact Finish - Mating
- Gold
- Contact Type
- Male Pin
- Ingress Protection
- IP67
- Insulation Height
- 0.835 21.21mm
- Style
- Board to Cable/Wire
- Number of Positions Loaded
- All
- Reach Compliance Code
- unknown
- Insulation Color
- Gray
- Shrouding
- Shrouded - 4 Wall
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Amphenol AT04-12PA-BM01.
AT04-12PA-BM01 Overview
The product is packaged in Receptacle.This device is mounted in the Through Hole position.It has been determined that a Tray case is necessary to package the product.There is a product in the BoardLock? AT Series.The device could be used for the following application: Automotive, General Purpose, Industrial.There are a number of advantages to its Board Lock feature.Part Through Hole is mounted to the part.As a result, the device runs at -55°C~125°C Operating Temperature.
AT04-12PA-BM01 Features
BoardLock? AT series
AT04-12PA-BM01 Applications
There are a lot of Amphenol Sine Systems Corp
AT04-12PA-BM01 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
