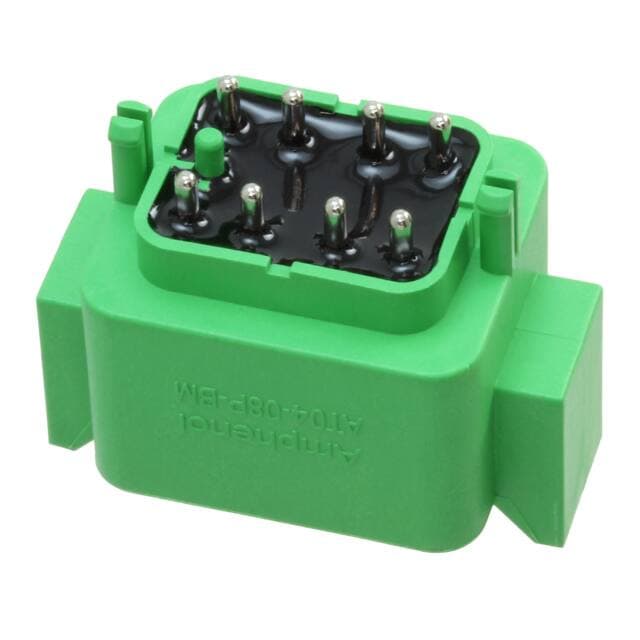

Amphenol AT04-08PC-BM04
Manufacturer No:
AT04-08PC-BM04
Manufacturer:
Package:
Description:
BoardLock? AT Series 2-Row Receptacle Solder Copper Alloy Tray Through Hole Nickel Thermoplastic 8-Position Board to Cable/Wire 0.835 21.21mm Height
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
AT04-08PC-BM04 information
Amphenol AT04-08PC-BM04 technical specifications, attributes, parameters and parts with similar specifications to Amphenol AT04-08PC-BM04.
- Type
- Parameter
- Factory Lead Time
- 12 Weeks
- Contact Material
- Copper Alloy
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Contact Shape
- Circular
- Insulation Material
- Thermoplastic
- Operating Temperature
- -55°C~125°C
- Packaging
- Tray
- Series
- BoardLock? AT
- Published
- 2015
- Feature
- Board Lock, Potting Wall
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Solder
- ECCN Code
- EAR99
- Connector Type
- Receptacle
- Number of Positions
- 8
- Applications
- Automotive, General Purpose, Industrial
- Number of Rows
- 2
- Gender
- Female
- Fastening Type
- Latch Holder
- Contact Finish - Mating
- Nickel
- Contact Type
- Male Pin
- Current Rating (Amps)
- 13A
- Insulation Height
- 0.835 21.21mm
- Style
- Board to Cable/Wire
- Number of Positions Loaded
- All
- Reach Compliance Code
- unknown
- Insulation Color
- Green
- Shrouding
- Shrouded - 4 Wall
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Amphenol AT04-08PC-BM04.
AT04-08PC-BM04 Overview
Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the BoardLock? AT Series.There are a variety of possible applications for this device, including Automotive, General Purpose, Industrial.Several benefits come from the Board Lock, Potting Wall feature.There is a mounting hole at Through Hole.Devices operate at -55°C~125°C operating temperatures.
AT04-08PC-BM04 Features
BoardLock? AT series
AT04-08PC-BM04 Applications
There are a lot of Amphenol Sine Systems Corp
AT04-08PC-BM04 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
