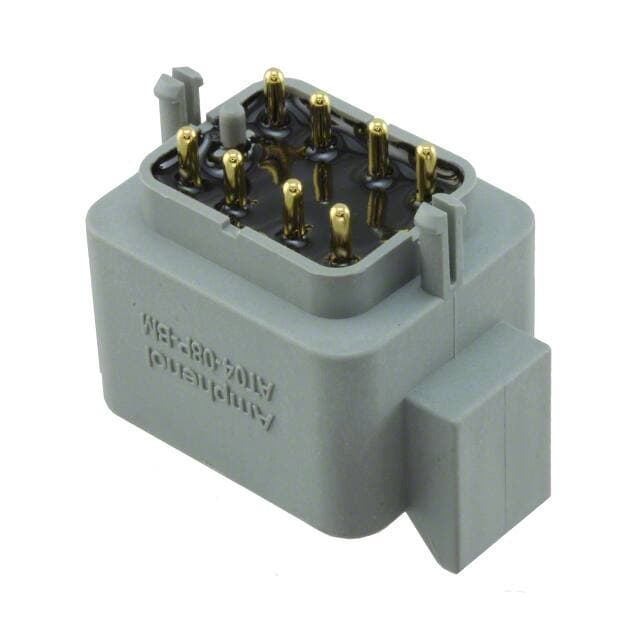

Amphenol AT04-08PA-BM02
Manufacturer No:
AT04-08PA-BM02
Manufacturer:
Package:
Description:
BoardLock? AT Series 2-Row Receptacle Solder Copper Alloy Tray Through Hole Gold Thermoplastic 8-Position Board to Cable/Wire 0.835 21.21mm Height
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
AT04-08PA-BM02 information
Amphenol AT04-08PA-BM02 technical specifications, attributes, parameters and parts with similar specifications to Amphenol AT04-08PA-BM02.
- Type
- Parameter
- Factory Lead Time
- 12 Weeks
- Contact Material
- Copper Alloy
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Contact Shape
- Circular
- Insulation Material
- Thermoplastic
- Operating Temperature
- -55°C~125°C
- Packaging
- Tray
- Series
- BoardLock? AT
- Published
- 2015
- Feature
- Board Lock, Potting Wall
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Solder
- ECCN Code
- EAR99
- Connector Type
- Receptacle
- Number of Positions
- 8
- Applications
- Automotive, General Purpose, Industrial
- Number of Rows
- 2
- Gender
- Female
- Fastening Type
- Latch Holder
- Contact Finish - Mating
- Gold
- Contact Type
- Male Pin
- Current Rating (Amps)
- 13A
- Insulation Height
- 0.835 21.21mm
- Style
- Board to Cable/Wire
- Number of Positions Loaded
- All
- Reach Compliance Code
- unknown
- Insulation Color
- Gray
- Shrouding
- Shrouded - 4 Wall
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Amphenol AT04-08PA-BM02.
AT04-08PA-BM02 Overview
Packaging for this item is Receptacle.There is a mounting type of Through Hole for this device.It is necessary to use a Tray case for packaging the product.This product is part of the BoardLock? AT Series.A possible application for the device is Automotive, General Purpose, Industrial.In many ways, its Board Lock, Potting Wall feature makes it more powerful.Through Hole is used to mount the part.In this case, the device operates at -55°C~125°C Operating Temperature.
AT04-08PA-BM02 Features
BoardLock? AT series
AT04-08PA-BM02 Applications
There are a lot of Amphenol Sine Systems Corp
AT04-08PA-BM02 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
