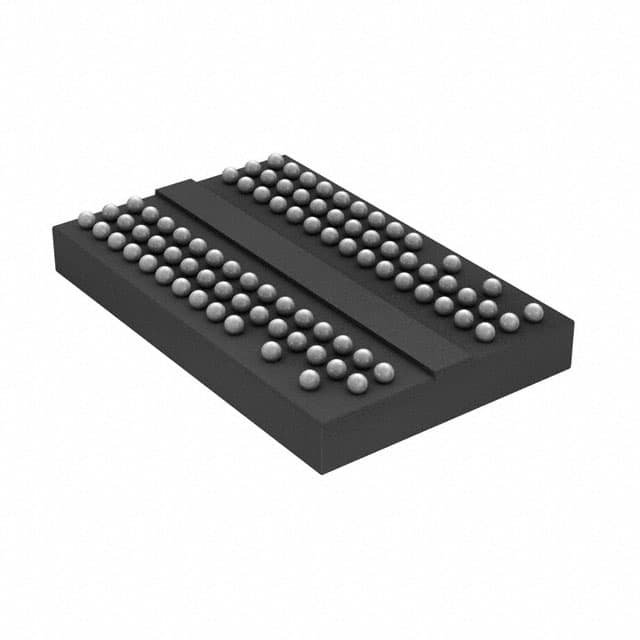

Alliance Memory AS4C16M16D2-25BCN
Alliance Memory AS4C16M16D2-25BCN

Alliance Memory AS4C16M16D2-25BCN

Manufacturer No:

AS4C16M16D2-25BCN

Manufacturer:

Alliance Memory

Package:

84-TFBGA

Description:

Memory IC 12.5mm mm

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AS4C16M16D2-25BCN information

Alliance Memory AS4C16M16D2-25BCN technical specifications, attributes, parameters and parts with similar specifications to Alliance Memory AS4C16M16D2-25BCN.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 84-TFBGA
  • Surface Mount
  • YES
  • Operating Temperature
  • 0°C~85°C TC
  • Packaging
  • Tray
  • Published
  • 2015
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 84
  • ECCN Code
  • EAR99
  • Additional Feature
  • AUTO/SELF REFRESH
  • Technology
  • SDRAM - DDR2
  • Voltage - Supply
  • 1.7V~1.9V
  • Terminal Position
  • BOTTOM
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Number of Functions
  • 1
  • Supply Voltage
  • 1.8V
  • Terminal Pitch
  • 0.8mm
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • JESD-30 Code
  • R-PBGA-B84
  • Supply Voltage-Max (Vsup)
  • 1.9V
  • Supply Voltage-Min (Vsup)
  • 1.7V
  • Number of Ports
  • 1
  • Memory Type
  • Volatile
  • Operating Mode
  • SYNCHRONOUS
  • Clock Frequency
  • 400MHz
  • Access Time
  • 400ps
  • Memory Format
  • DRAM
  • Memory Interface
  • Parallel
  • Organization
  • 16MX16
  • Memory Width
  • 16
  • Write Cycle Time - Word, Page
  • 15ns
  • Memory Density
  • 268435456 bit
  • Length
  • 12.5mm
  • Height Seated (Max)
  • 1.2mm
  • Width
  • 8mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Alliance Memory AS4C16M16D2-25BCN.

Datasheets:

AS4C16M16D2-25BCN Overview


A Volatile-type memory can be classified as the memory type of this device. In addition, memory ics is available in a Tray case as well. Embedded in the 84-TFBGA case, memory ics is a single file. On the chip, there is an 256Mb 16M x 16 memory, which is the size of the chip's memory. There is a DRAM-format memory used in this device, which is the memory format used by mainstream devices. Featuring an extended operating temperature range of 0°C~85°C TC, this device allows it to be used in a variety of demanding applications. The device is capable of handling a supply voltage of 1.7V~1.9V volts. The recommended mounting type for memory ics is Surface Mount. A total of 84 terminations have been planted on the chip. The comprehensive working procedure of this part involves 1 functions. In order to power this memory device, 1.8V will be necessary. A clock frequency rotation within 400MHz is used for the ic memory chip to rotate data. This chip features all the merits of a conventional chip, but it also features AUTO/SELF REFRESH to improve system performance. 1 ports allow read/write access to one memory address in this chip.

AS4C16M16D2-25BCN Features


Package / Case: 84-TFBGA
Additional Feature:AUTO/SELF REFRESH


AS4C16M16D2-25BCN Applications


There are a lot of Alliance Memory, Inc.
AS4C16M16D2-25BCN Memory applications.


  • supercomputers
  • telecommunications
  • workstations,
  • DVD disk buffer
  • data buffer
  • nonvolatile BIOS memory
  • Camcorders
  • embedded logic
  • eDRAM
  • graphics card
