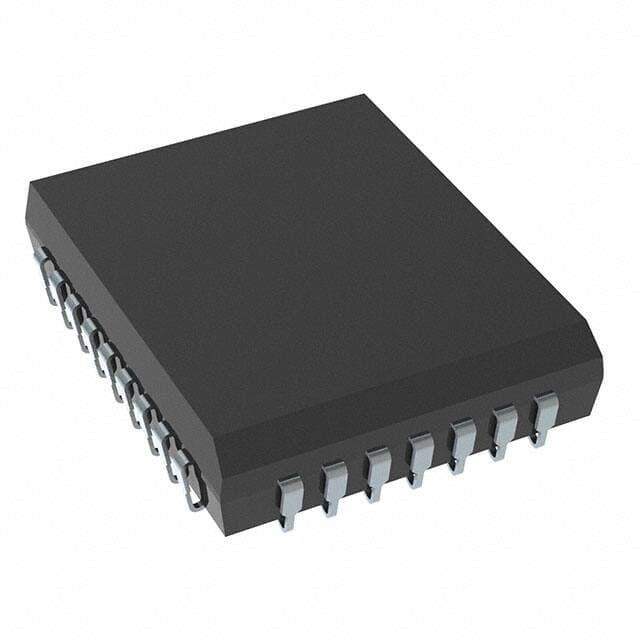

Alliance Memory AS29CF040-55CCIN
Alliance Memory AS29CF040-55CCIN

Alliance Memory AS29CF040-55CCIN

Manufacturer No:

AS29CF040-55CCIN

Manufacturer:

Alliance Memory

Package:

32-LCC (J-Lead)

Description:

Memory IC 13.97mm mm

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AS29CF040-55CCIN information

Alliance Memory AS29CF040-55CCIN technical specifications, attributes, parameters and parts with similar specifications to Alliance Memory AS29CF040-55CCIN.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 32-LCC (J-Lead)
  • Surface Mount
  • YES
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Tube
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 32
  • Technology
  • FLASH - NOR
  • Voltage - Supply
  • 4.5V~5.5V
  • Terminal Position
  • QUAD
  • Number of Functions
  • 1
  • Supply Voltage
  • 5V
  • Terminal Pitch
  • 1.27mm
  • JESD-30 Code
  • R-PQCC-J32
  • Supply Voltage-Max (Vsup)
  • 5.5V
  • Supply Voltage-Min (Vsup)
  • 4.5V
  • Memory Size
  • 4Mb 512K x 8
  • Memory Type
  • Non-Volatile
  • Operating Mode
  • ASYNCHRONOUS
  • Supply Current-Max
  • 0.04mA
  • Memory Format
  • FLASH
  • Memory Interface
  • Parallel
  • Memory Width
  • 8
  • Write Cycle Time - Word, Page
  • 55ns
  • Standby Current-Max
  • 0.001A
  • Memory Density
  • 4194304 bit
  • Access Time (Max)
  • 55 ns
  • Programming Voltage
  • 5V
  • Endurance
  • 100000 Write/Erase Cycles
  • Data Retention Time-Min
  • 20
  • Data Polling
  • YES
  • Toggle Bit
  • YES
  • Command User Interface
  • NO
  • Number of Sectors/Size
  • 8
  • Sector Size
  • 64K
  • Ready/Busy
  • YES
  • Reverse Pinout
  • NO
  • Length
  • 13.97mm
  • Height Seated (Max)
  • 3.4mm
  • Width
  • 11.43mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Alliance Memory AS29CF040-55CCIN.

Datasheets:

AS29CF040-55CCIN Overview


Non-Volatile is its memory type. It is available in a case with a Tube shape. As you can see, it is embedded in 32-LCC (J-Lead) case. There is an 4Mb 512K x 8 memory capacity on the chip. In this device, the memory is of the FLASH-format, which is a popular format in the mainstream computing sector. Due to its extended operating temperature range, the device is well suited for a wide range of demanding applications. A voltage of 4.5V~5.5V is possible to be applied to the supply. There is a recommendation that Surface Mount mounting type should be used for this product. As you can see from the diagram, the chip is planted with 32 terminations. In total, 1 functions are supported by this part. The memory device designed for this application has been designed to be powered by an 5V power supply. This memory ics is capable of operating with an input current of 0.04mA at max. A programming voltage of 5V is needed to alter the state of certain nonvolatile memory arrays. The manufacturer has divided this memory into 8 different sections that have specific sizes in total.

AS29CF040-55CCIN Features


Package / Case: 32-LCC (J-Lead)


AS29CF040-55CCIN Applications


There are a lot of Alliance Memory, Inc.
AS29CF040-55CCIN Memory applications.


  • telecommunications
  • workstations,
  • DVD disk buffer
  • data buffer
  • nonvolatile BIOS memory
  • Camcorders
  • embedded logic
  • eDRAM
  • graphics card
  • hard disk drive (HDD)
