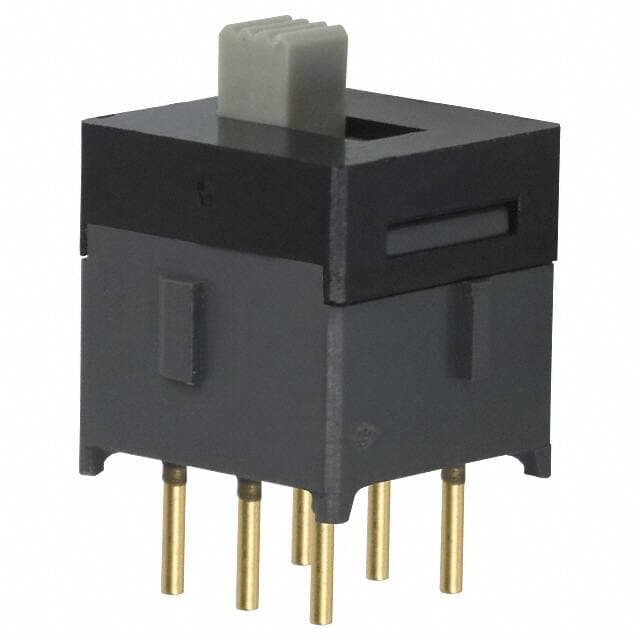

NKK Switches AS23AP

Manufacturer No:

AS23AP

Manufacturer:

NKK Switches

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AS23AP information

NKK Switches AS23AP technical specifications, attributes, parameters and parts with similar specifications to NKK Switches AS23AP.

Type
Parameter

Factory Lead Time
9 Weeks

Contact Material
Phosphor Bronze

Mount
Through Hole

Mounting Type
Through Hole

Insulation Material
CARBON COMPOSITE POLYMER

Actuator Material
Polyamide (PA), Nylon, Glass Filled

Operating Temperature
-30°C~85°C

Packaging
Tray

Series
AS

Published
2006

JESD-609 Code
e4

Feature
Epoxy Sealed Terminals

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
PC Pins

ECCN Code
EAR99

Number of Positions
3

Voltage - Rated DC
28V

Current Rating (Amps)
0.4VA AC/DC

Orientation
Vertical

Depth
9.2mm

Contact Finish
Gold

Termination Style
PC Pin

Body Breadth
9.1948 mm

Actuator Type
Standard

Circuit
DPDT

Switch Function
On-Off-On

Contact Style
Non-Shorting

Contact Resistance
0.05mOhm

Insulation Resistance
500000000Ohm

Max Voltage Rating (AC)
28V

Max Current Rating
100mA

Dielectric Withstanding Voltage
500VAC V

Electrical Life
50,000 Cycles

Max Voltage Rating (DC)
28V

Mechanical Life
50,000 Cycles

Switch Type
SLIDE SWITCH

Operating Force
260gf

Illumination Type
Non-Illuminated

Contact Timing
Non-Shorting (BBM)

PCB Hole Count
6

Actuator Color
WHITE

Solderability
WAVE

Contact (DC) Max Power Rating R Load
0.4VA@28VDC

Switching Capacity
400 mW

Length
9.8mm

Download datasheets and manufacturer documentation for NKK Switches AS23AP.

Description: The NKK Switches AS23AP Slide Switch is a double-pole double-throw (DPDT) switch with an ON-OFF-ON configuration. It has a .098 inch straight PC terminal and is designed for use in a variety of applications.

Features: The AS23AP Slide Switch has a durable construction and is rated for up to 10A at 125VAC. It has a long life expectancy of up to 10,000 cycles and is RoHS compliant. It also has a low profile design and is available in a variety of colors.

Applications: The AS23AP Slide Switch is suitable for a wide range of applications, including industrial, automotive, and consumer electronics. It can be used for controlling motors, lights, and other electrical devices. It is also suitable for use in audio and video equipment, as well as in medical and laboratory equipment.
