OSRAM AS1742H-T
OSRAM AS1742H-T

OSRAM AS1742H-T

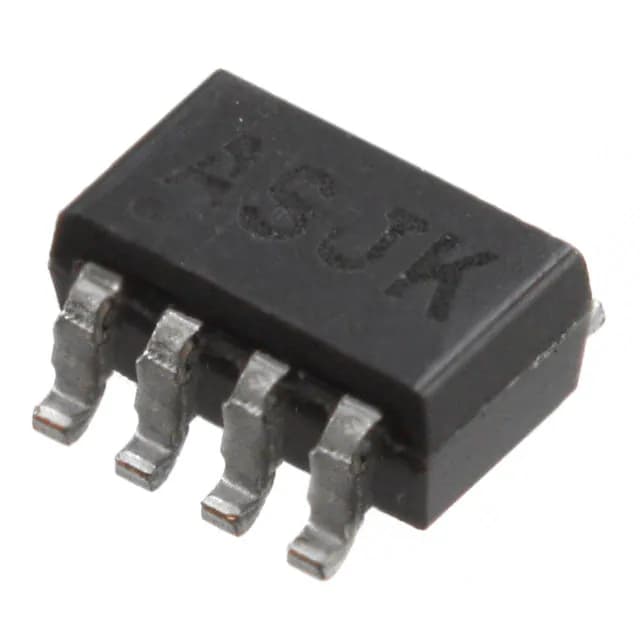

Manufacturer No:

AS1742H-T

Manufacturer:

OSRAM

Package:

SOT-23-8

Description:

22ns, 14ns SPST - NC 800mOhm Analog Switches 1nA SOT-23-8

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AS1742H-T information

OSRAM AS1742H-T technical specifications, attributes, parameters and parts with similar specifications to OSRAM AS1742H-T.

  • Type
  • Parameter
  • Mounting Type
  • Surface Mount
  • Package / Case
  • SOT-23-8
  • Number of Pins
  • 8
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Tape & Reel (TR)
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Resistance
  • 800mOhm
  • Number of Circuits
  • 2
  • Operating Supply Current
  • 10nA
  • Throw Configuration
  • SPST
  • Turn On Delay Time
  • 13 ns
  • Supply Type
  • Single
  • Bandwidth
  • 130MHz
  • Turn-Off Delay Time
  • 7 ns
  • On-State Resistance (Max)
  • 800mOhm
  • Multiplexer/Demultiplexer Circuit
  • 1:1
  • Current - Leakage (IS(off)) (Max)
  • 1nA
  • Channel Capacitance (CS(off), CD(off))
  • 35pF 35pF
  • Switch Circuit
  • SPST - NC
  • Switch Time (Ton, Toff) (Max)
  • 22ns, 14ns
  • Charge Injection
  • 5pC
  • Channel-to-Channel Matching (?Ron)
  • 20m ?
  • Voltage - Supply, Single (V+)
  • 1.6V~3.6V
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for OSRAM AS1742H-T.

Datasheets:

AS1742H-T Overview


This electronic part is conveniently packaged in SOT-23-8, making it easy to ship abroad. This high-reliability packaging method uses advanced packaging methods Tape & Reel (TR). A switch device like this is mounted in Surface Mount. 1:1 is the ratio of multiplexer to demultiplexer circuits. An extended operating temperature of -40°C~85°C TA degrees Celsius. Unlike digital switches, these are based on SPST - NC switching circuits. 2 circuits are used in this analogue multiplexer. Analog switches have 800mOhm internal resistance. To find out what the 8 pins do, please refer to the datasheets. Analog switch ics with Single supply type are cost-effective. It would be sufficient to run this analogue multiplexer with 10nA current. A voltage of 1.6V~3.6V is required for this switch device, which drains from a single voltage source. In 130MHz-bandwidths, data can be transferred.

AS1742H-T Features


Switch Circuit: SPST - NC
10nA Supply Current
Bandwidth: 130MHz


AS1742H-T Applications


There are a lot of ams
AS1742H-T Analog Switches & Multiplexers ICs applications.


  • Ultrasound
  • Audio and video switching
  • Automatic test equipment
  • Precision data acquisition
  • Battery-powered systems
  • Sample-and-hold systems
  • Communication systems
  • Data Acquisition Systems
  • Relay Replacement
  • Battery Powered Systems

User Guide
