NKK Switches AS12AP

Manufacturer No:

AS12AP

Manufacturer:

NKK Switches

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AS12AP information

NKK Switches AS12AP technical specifications, attributes, parameters and parts with similar specifications to NKK Switches AS12AP.

Type
Parameter

Factory Lead Time
5 Weeks

Contact Material
Phosphor Bronze

Mount
Through Hole

Mounting Type
Through Hole

Actuator Material
Polyamide (PA), Nylon, Glass Filled

Operating Temperature
-30°C~85°C

Packaging
Tray

Series
AS

Feature
Epoxy Sealed Terminals

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
PC Pins

Voltage - Rated DC
28V

Current Rating (Amps)
0.4VA AC/DC

Orientation
Vertical

Depth
5.38mm

Current Rating
400mA

Contact Finish
Gold

Termination Style
PC Pin

Voltage - Rated AC
28V

Actuator Type
Standard

Circuit
SPDT

Switch Function
On-On

Contact Style
Non-Shorting

Max Current Rating
100mA

Electrical Life
50,000 Cycles

Max Voltage Rating (DC)
28V

Mechanical Life
50,000 Cycles

Operating Force
260gf

Illumination Type
Non-Illuminated

Switching Voltage
28V

Contact Timing
Non-Shorting (BBM)

Switching Capacity
400 mW

Length
9.8mm

Actuator Length
2.50mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for NKK Switches AS12AP.

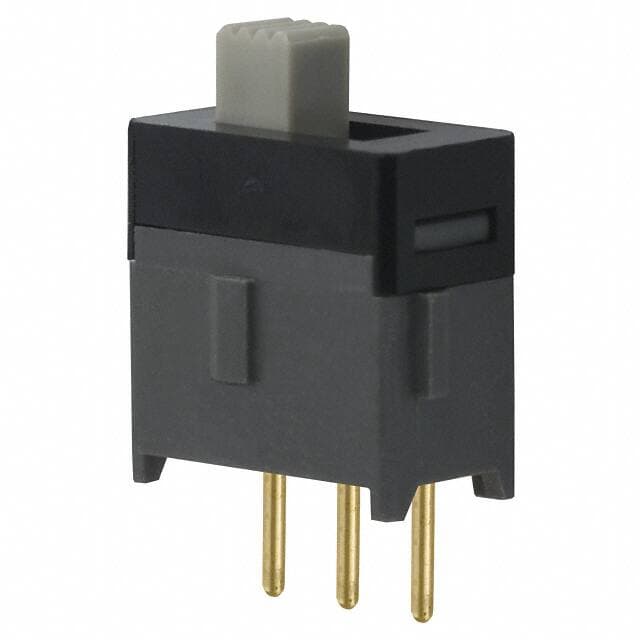

NKK Switches Slide Switches AS12AP is a single-pole double-throw (SPDT) slide switch with a top slide actuator. It is designed for low-current applications, with a maximum current rating of 0.1A and a maximum voltage rating of 28VAC/28VDC. It has a maximum power rating of 0.4VA and a mechanical life of 50000 cycles. The switch is designed for through-hole mounting and has PC pins for easy connection.

Features of the NKK Switches Slide Switches AS12AP include a low current rating, a low voltage rating, a long mechanical life, and a through-hole mounting design.

Applications of the NKK Switches Slide Switches AS12AP include use in low-current applications such as audio equipment, medical equipment, and consumer electronics. It can also be used in industrial applications such as control panels and test equipment.
