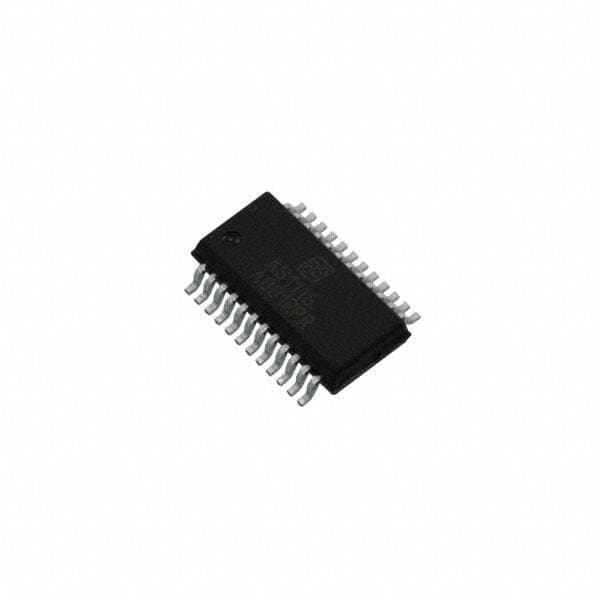

OSRAM AS1116-BSST

Manufacturer No:

AS1116-BSST

Manufacturer:

OSRAM

Package:

24-SSOP (0.154, 3.90mm Width)

Description:

Obsolete DUAL 3V V Display Drivers ICs Tape & Reel (TR) Matte Tin (Sn) 7

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AS1116-BSST information

OSRAM AS1116-BSST technical specifications, attributes, parameters and parts with similar specifications to OSRAM AS1116-BSST.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
24-SSOP (0.154, 3.90mm Width)

Surface Mount
YES

Number of Pins
24

Weight
255.5993mg

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
24

Terminal Finish
Matte Tin (Sn)

Voltage - Supply
2.7V~5.5V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3V

Terminal Pitch
0.635mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Operating Supply Voltage
5.5V

Configuration
8 x (7 Segment), 64 LED

Interface
SPI

Operating Supply Current
335mA

Display Type
LED

Number of LEDs
64

Number of Segments
7

Multiplexed Display Capability
NO

Display Mode
DOT MATRIX; SEGMENT

Data Input Mode
SERIAL

Digits or Characters
8 Digits

Length
8.66mm

Width
3.91mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for OSRAM AS1116-BSST.

Datasheets:

ams-as1116bsst-datasheets-7076.pdf

AS1116-BSST Overview

Tape & Reel (TR) has been designed similarly to this package.A package with version 24-SSOP (0.154, 3.90mm Width) includes it.As far as the display type of this electrical device is concerned, it is LED.An electronic component is mounted on a board using Surface Mount.During normal use, this electrical part has an operating temperature of -40°C~85°C.Using a 2.7V~5.5VV power source should be sufficient.Terminating transmission lines with devices with matching impedances is called 24 termination.The board is equipped with 24-pins.The supply voltage of this device is 3V.In order for 335mA to perform its full function, a supply current needs to be provided for it.7 segments are the electronic solutions segment of the Seller Group's equipment solutions business.Optimal efficiency requires a supply voltage of 5.5V.When the maximum current required for its operation reaches 335mA, the device is considered to be operational.

AS1116-BSST Features

24-SSOP (0.154, 3.90mm Width) package
24 pins

AS1116-BSST Applications

There are a lot of ams
AS1116-BSST display drivers applications.

Auto dashboard displays
Appliance control panels
Industrial Control Indicator
Relay Driver
Digital Clock, Thermometer, Counter, Voltmeter
Instrumentation Readouts
Instrumentation
Test Equipment
Hand Held Instruments
Bargraph Dlsplays
