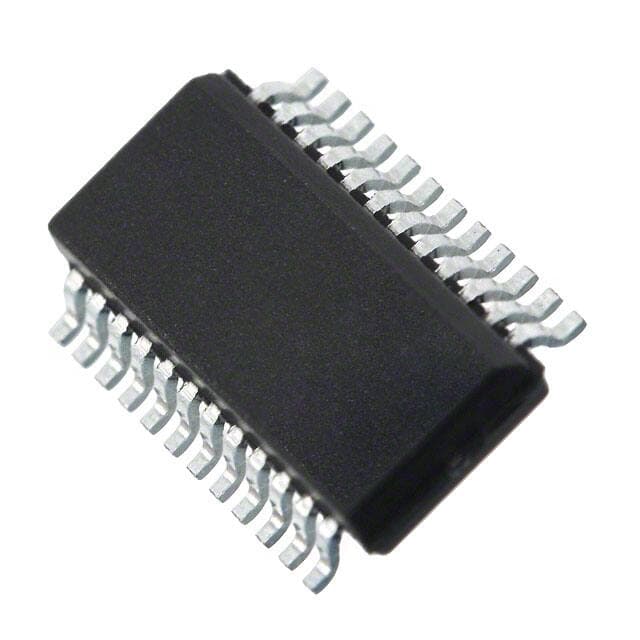

OSRAM AS1113-BSST

Manufacturer No:

AS1113-BSST

Manufacturer:

OSRAM

Package:

24-SSOP (0.154, 3.90mm Width)

Description:

3.3/5V 0.635mm PMIC 24 Pin 50MHz 5V 24-SSOP (0.154, 3.90mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AS1113-BSST information

OSRAM AS1113-BSST technical specifications, attributes, parameters and parts with similar specifications to OSRAM AS1113-BSST.

Type
Parameter

Factory Lead Time
16 Weeks

Mounting Type
Surface Mount

Package / Case
24-SSOP (0.154, 3.90mm Width)

Surface Mount
YES

Number of Pins
24

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
24

ECCN Code
EAR99

Type
Linear

Applications
Signage

HTS Code
8542.39.00.01

Subcategory
Display Drivers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.635mm

Frequency
50MHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
24

Qualification Status
Not Qualified

Operating Supply Voltage
5.5V

Power Supplies
3.3/5V

Output Current
50mA

Voltage - Output
15V

Topology
Shift Register

Output Current per Channel
50mA

Internal Switch(s)
Yes

fmax-Min
30 MHz

Number of Segments
16

Voltage - Supply (Min)
3V

Multiplexed Display Capability
NO

Display Mode
BAR GRAPH

Data Input Mode
SERIAL

Length
8.645mm

Width
3.9mm

Height Seated (Max)
1.75mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for OSRAM AS1113-BSST.

Datasheets:

ams-as1113bqfr-datasheets-6028.pdf

AS1113-BSST Overview

Using its 24-SSOP (0.154, 3.90mm Width) package, it is possible to save board space. LED drivers design with 16 outputs.This mounting method is Surface Mount.The system emerges as a Linear with high efficiency.It is capable of working normally at -40°C~85°C TA.Signage has considerable advantages.A frequency of 50MHz is used to operate it.The operation of this system is supported by 24 terminations.This configuration is built upon 24 pins.It is possible that failures will occur if the voltage supply is below 3V.16 segments are present.Its output voltage is 15V.The device has a pin count of 24.In addition to Display Drivers, it is also classified by its characteristics.50mA is the maximum amount of current that can be supplied to the load.It is necessary to power systems with a voltage of 5.5V
