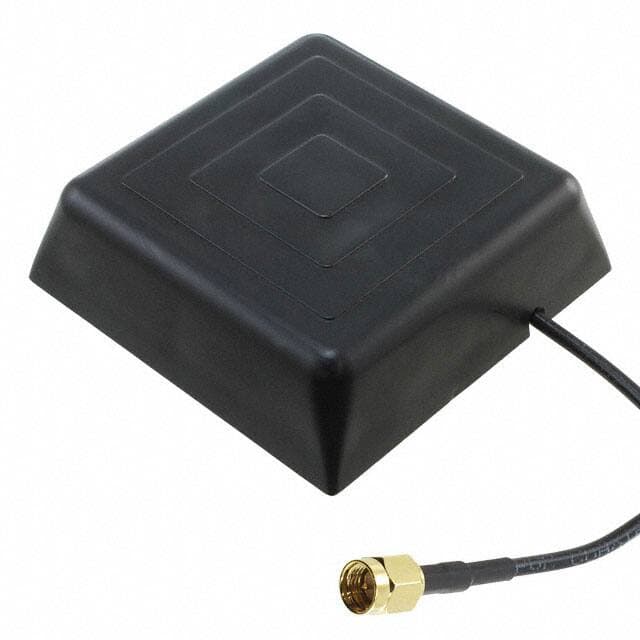

API TECH AR1615CC1575XXF

Manufacturer No:

AR1615CC1575XXF

Manufacturer:

API TECH

Package:

SMA

Description:

1 Bands Module UHF 1GHz~2GHz Magnetic, Chassis Mount SMA 1.615GHz 3dBic Bulk 0.885 22.48mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AR1615CC1575XXF information

API TECH AR1615CC1575XXF technical specifications, attributes, parameters and parts with similar specifications to API TECH AR1615CC1575XXF.

Type
Parameter

Mounting Type
Magnetic, Chassis Mount

Package / Case
SMA

Packaging
Bulk

Published
2010

Feature
Cable - 254mm

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
SMA

Frequency
1.615GHz

Impedance
50Ohm

Cable Length
254mm

Gain
3dBic

Frequency Range
1.605GHz~1.625GHz

Antenna Type
Module

VSWR
2.1

Number of Bands
1

Frequency Group
UHF 1GHz~2GHz

Frequency (Center/Band)
1.615GHz

Height
22.479mm

Length
71.374mm

Width
71.374mm

Height (Max)
0.885 22.48mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for API TECH AR1615CC1575XXF.

Datasheets:

apitechnologiescorp-ar1615cc1575xxf-datasheets-0910.pdf

AR1615CC1575XXF Overview

RF Antennass can be carried out with Magnetic, Chassis Mount.Packaging for the RF modulator consists of Bulk solid enclosures.The RF ic can be shipped overseas conveniently because it is packaged in SMA.

AR1615CC1575XXF Features

With Magnetic, Chassis Mount

AR1615CC1575XXF Applications

There are a lot of API Technologies Corp
AR1615CC1575XXF RF Antennas applications.

Cosmic noise
Generators
Lightings
Rectifiers
Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
