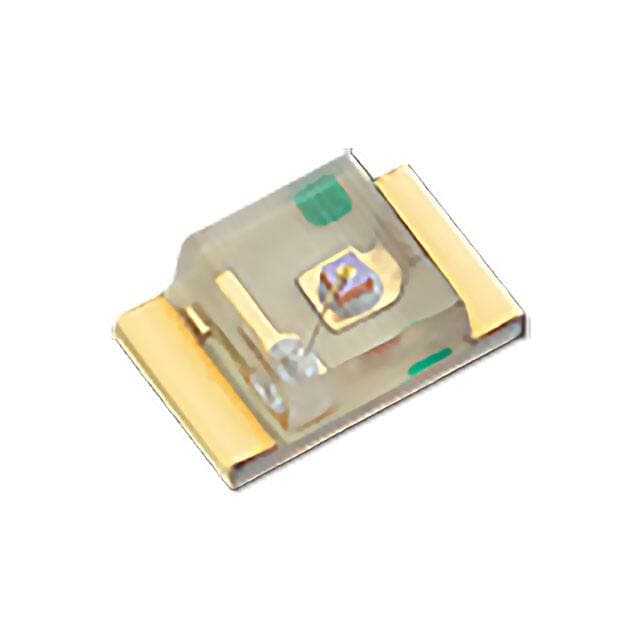

Kingbright APT2012PD1C

Manufacturer No:

APT2012PD1C

Manufacturer:

Kingbright

Package:

2-SMD, No Lead

Description:

Surface Mount -40°C~85°C Tape & Reel (TR) Wavelength: 940nm 2-SMD, No Lead 170V 6ns

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

APT2012PD1C information

Kingbright APT2012PD1C technical specifications, attributes, parameters and parts with similar specifications to Kingbright APT2012PD1C.

Type
Parameter

Factory Lead Time
12 Weeks

Mounting Type
Surface Mount

Package / Case
2-SMD, No Lead

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Viewing Angle
160°

Response Time
6ns

Voltage - DC Reverse (Vr) (Max)
170V

Wavelength
940nm

Spectral Range
420nm ~ 1120nm

Current - Dark (Typ)
10nA Max

Color - Enhanced
Infrared (NIR)

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Kingbright APT2012PD1C.

APT2012PD1C Overview

To protect them from damage, these photodiodes are packaged in the Tape & Reel (TR). For safety reasons, the photodiodes are packaged in 2-SMD, No Lead packages. When reverse-biased continuously, photodiodes can withstand a maximum voltage of 170V.

APT2012PD1C Features

Moisture Sensitivity Level (MSL): 3 (168 Hours)
Operating Temperature: -40°C~85°C
Packaging: Tape & Reel (TR)
Spectral Range: 420nm ~ 1120nm
Response Time: 6ns
Viewing Angle: 160°

APT2012PD1C Applications

There are a lot of Kingbright
APT2012PD1C Photodiodes applications.

Infrared remote control
Infrared data transmission
Photo interrupters
Shaft encoders
Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
