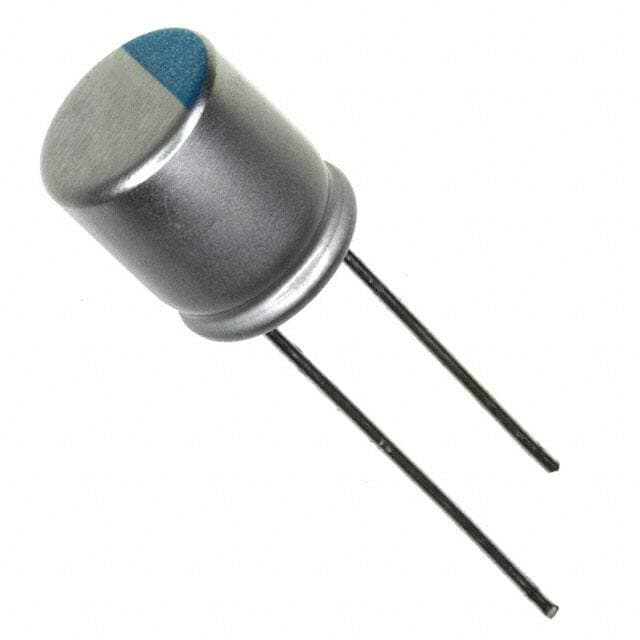

United Chemi-Con APSG160ELL561MHB5S
United Chemi-Con APSG160ELL561MHB5S

United Chemi-Con APSG160ELL561MHB5S

Manufacturer No:

APSG160ELL561MHB5S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

560?F ±20% Radial, Can 0.512 13.00mm Bulk 14mOhm NPCAP?-PSG Through Hole Polymer General Purpose

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

APSG160ELL561MHB5S information

United Chemi-Con APSG160ELL561MHB5S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con APSG160ELL561MHB5S.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Bulk
  • Series
  • NPCAP?-PSG
  • Published
  • 2015
  • Size / Dimension
  • 0.315Dia 8.00mm
  • Tolerance
  • ±20%
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Radial
  • Type
  • Polymer
  • Applications
  • General Purpose
  • Capacitance
  • 560?F
  • Voltage - Rated DC
  • 16V
  • Lead Pitch
  • 3.5mm
  • ESR (Equivalent Series Resistance)
  • 14mOhm
  • Lead Spacing
  • 0.138 3.50mm
  • Lead Diameter
  • 600 ?m
  • Lifetime @ Temp
  • 20000 Hrs @ 105°C
  • Ripple Current
  • 4.97A
  • Life (Hours)
  • 20000 hours
  • Dissipation Factor
  • 0.12 %
  • Diameter
  • 8mm
  • Height
  • 11.5mm
  • Height Seated (Max)
  • 0.512 13.00mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for United Chemi-Con APSG160ELL561MHB5S.

Datasheets:

APSG160ELL561MHB5S Overview


Power systems require ripple current at a high frequency of 4.97A @ 100kHz.In this case, the ESR (Equivalent Series Resistance) is 14mOhm.A dissipation factor of 0.12 % is significant for this part.Stable operation requires a temperature of -55°C~105°C.

APSG160ELL561MHB5S Features


4.97A @ 100kHz ripple current on a high frequency
a 14mOhm in ESR (Equivalent Series Resistance) in this electrical device
an operating temperature of -55°C~105°C


APSG160ELL561MHB5S Applications


There are a lot of United Chemi-Con
APSG160ELL561MHB5S applications of aluminum polymer capacitors.


  • LED driver power supplies
  • Phone chargers
  • Motherboards
  • Servers and adapters (laptop power supplies)
  • Medical equipment
  • Switching Power Supply and DC/DC Converter.
  • Buck up Power Supplies of CPU(VRM etc.)
  • Miniature high Power Supply.
