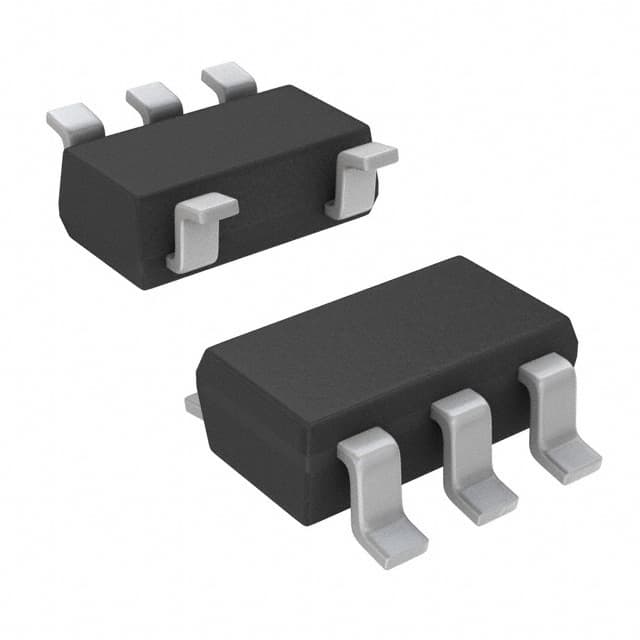

AKM AP1156ADS13

Manufacturer No:

AP1156ADS13

Manufacturer:

AKM

Package:

SC-74A, SOT-753

Description:

Enable Fixed PMIC SC-74A, SOT-753

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AP1156ADS13 information

AKM AP1156ADS13 technical specifications, attributes, parameters and parts with similar specifications to AKM AP1156ADS13.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
SC-74A, SOT-753

Supplier Device Package
SOT-23-5

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Published
2014

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Voltage - Input (Max)
-17V

Output Voltage
-1.3V

Output Type
Fixed

Output Configuration
Negative

Current - Output
150mA

Control Features
Enable

Voltage - Output (Min/Fixed)
-1.3V

Number of Regulators
1

Protection Features
Over Current, Over Temperature, Reverse Polarity, Short Circuit

Current - Quiescent (Iq)
300μA

Dropout Voltage
160mV

Min Current Limit
185mA

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for AKM AP1156ADS13.

AP1156ADS13 Overview

The package contains a Tape & Reel (TR) case. In SC-74A, SOT-753 cases, it is packaged. Fixed is the IC Voltage Regulator's output type. A total of 1 regulators are implemented in this eletric component. Surface Mount operating temperature varies depending on the IC Voltage Regulator. The Regulator IC chip is set to operate at -40°C~85°C TA degrees. It has been configured that the output function of this IC regulator is Negative. There is an output of 150mA at the moment. As far as its dropout voltage is concerned, it is 10 volts. Under 85°C degrees, you should use the regulator IC. Temperatures below -40°C are not allowed on the chip.

AP1156ADS13 Features

160mV dropout voltage
The maximum operating temperature of -40°C

AP1156ADS13 Applications

There are a lot of AKM Semiconductor Inc.
AP1156ADS13 Linear Voltage Regulators applications.

Personal communication device
Portable telephone
Electronic notebook
Camera
Video equipment
CPU power supply
Switching regulator
Multiple-power supply system
Digital audio player
Digital TV
