AOS AO5404E_001

Manufacturer No:

AO5404E_001

Manufacturer:

AOS

Package:

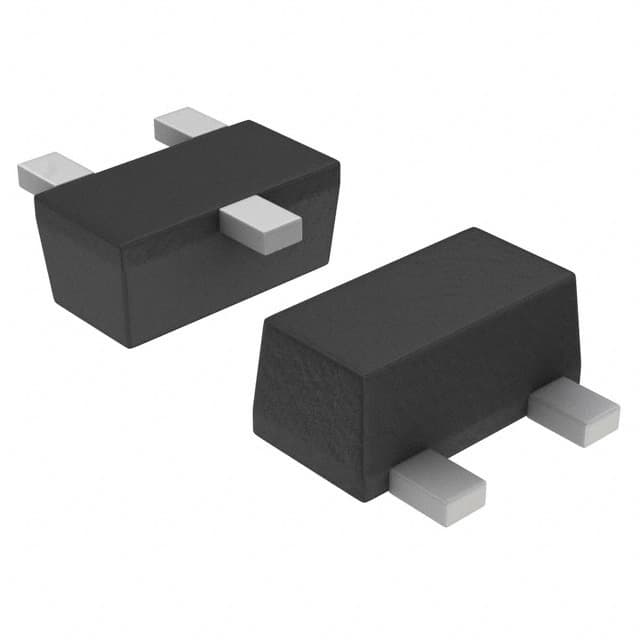

SC-89, SOT-490

Description:

MOSFET (Metal Oxide) N-Channel Tape & Reel (TR) 550m ? @ 500mA, 4.5V ±8V 45pF @ 10V 1nC @ 4.5V 20V SC-89, SOT-490

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AO5404E_001 information

AOS AO5404E_001 technical specifications, attributes, parameters and parts with similar specifications to AOS AO5404E_001.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
SC-89, SOT-490

Operating Temperature
-55°C~150°C TJ

Packaging
Tape & Reel (TR)

Published
2008

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Technology
MOSFET (Metal Oxide)

Power Dissipation-Max
280mW Ta

FET Type
N-Channel

Rds On (Max) @ Id, Vgs
550m ? @ 500mA, 4.5V

Vgs(th) (Max) @ Id
1V @ 250?A

Input Capacitance (Ciss) (Max) @ Vds
45pF @ 10V

Current - Continuous Drain (Id) @ 25°C
500mA Ta

Gate Charge (Qg) (Max) @ Vgs
1nC @ 4.5V

Drain to Source Voltage (Vdss)
20V

Drive Voltage (Max Rds On,Min Rds On)
1.8V 4.5V

Vgs (Max)
±8V

Download datasheets and manufacturer documentation for AOS AO5404E_001.

Datasheets:

alphaomegasemiconductorinc-ao5404e001-datasheets-2596.pdf

AO5404E_001 Overview

The input capacitance parameter, CI, is defined as the capacitance between the input terminals of an op amp with either input grounded, and this device's maximal input capacitance is 45pF @ 10V.Operating this transistor requires a 20V drain to source voltage (Vdss).By using drive voltage (1.8V 4.5V), this device helps reduce its overall power consumption.

AO5404E_001 Features

a 20V drain to source voltage (Vdss)

AO5404E_001 Applications

There are a lot of Alpha & Omega Semiconductor Inc.
AO5404E_001 applications of single MOSFETs transistors.

LCD/LED TV
Consumer Appliances
Lighting
Uninterruptible Power Supply
AC-DC Power Supply
Synchronous Rectification for ATX 1 Server I Telecom PSU
Motor drives and Uninterruptible Power Supplies
Micro Solar Inverter
DC/DC converters
Power Tools
