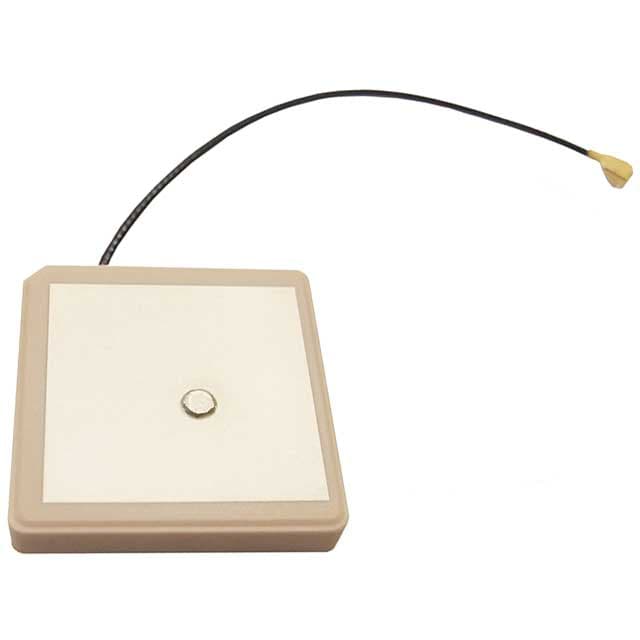

YAGEO ANT2525JB08B1575A
Manufacturer No:
ANT2525JB08B1575A
Manufacturer:
Package:
Description:
1 Bands Ceramic Patch UHF 1GHz~2GHz Surface Mount U.FL (UMCC), IPEX MHF1 5.5dBic Bulk GPS
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ANT2525JB08B1575A information
YAGEO ANT2525JB08B1575A technical specifications, attributes, parameters and parts with similar specifications to YAGEO ANT2525JB08B1575A.
- Type
- Parameter
- Factory Lead Time
- 16 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Packaging
- Bulk
- Feature
- LNA
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- U.FL (UMCC), IPEX MHF1
- Applications
- GPS
- Frequency
- 1.575GHz
- Impedance
- 50Ohm
- Cable Length
- 75mm
- Gain
- 5.5dBic
- RF Family/Standard
- Navigation
- Antenna Type
- Ceramic Patch
- VSWR
- 2
- Number of Bands
- 1
- Frequency Group
- UHF 1GHz~2GHz
- Height
- 6.9088mm
- Length
- 25mm
- Width
- 25mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for YAGEO ANT2525JB08B1575A.
RohsStatement:
ANT2525JB08B1575A Overview
RF Antennas is made easier with Surface Mount.RF modulator is packaged in a solid enclosure of Bulk.Having a Surface Mount makes it ideal for most RF ic designs.
ANT2525JB08B1575A Features
With Surface Mount
ANT2525JB08B1575A Applications
There are a lot of Yageo
ANT2525JB08B1575A RF Antennas applications.
- Static electricity
- Cosmic noise
- Generators
- Lightings
- Rectifiers
- Inverters
- Satellites
- Transmission
- Cellphones
- Laptops
