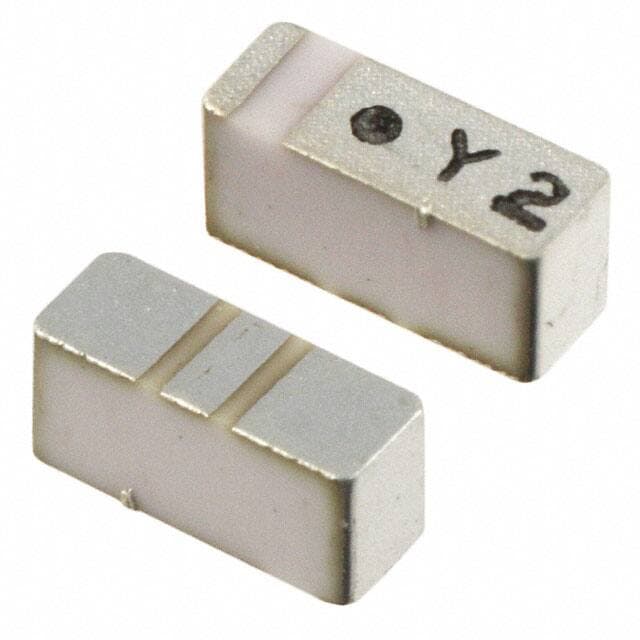

TDK ANT040015CCS2442MA1

Manufacturer No:

ANT040015CCS2442MA1

Manufacturer:

TDK

Package:

CSMD

Description:

1 Bands Chip UHF 2GHz~3GHz Surface Mount Solder 2.32dBi Tape & Reel (TR)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ANT040015CCS2442MA1 information

TDK ANT040015CCS2442MA1 technical specifications, attributes, parameters and parts with similar specifications to TDK ANT040015CCS2442MA1.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
CSMD

Number of Pins
2

Packaging
Tape & Reel (TR)

Published
2008

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Frequency
2.4GHz

Impedance
50Ohm

Gain
2.32dBi

Frequency Range
2.4GHz~2.485GHz

Antenna Type
Chip

VSWR
3.5

Number of Bands
1

Frequency Group
UHF 2GHz~3GHz

Height
1.4986mm

RoHS Status
RoHS Compliant
