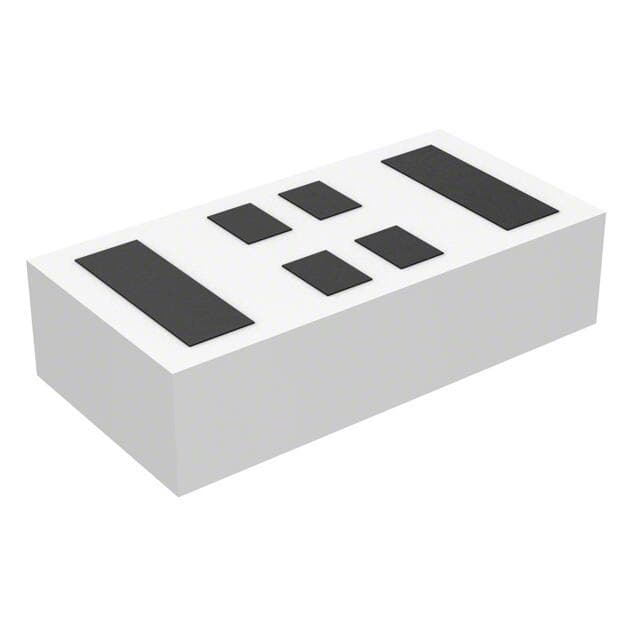

TDK ANT016008LCD2442MA1

Manufacturer No:

ANT016008LCD2442MA1

Manufacturer:

TDK

Package:

0603

Description:

2 Bands Chip UHF 2GHz~3GHz SHF f > 4GHz Surface Mount Solder 2.4GHz 5.5GHz 2.27dBi, 5.18dBi Cut Tape (CT) WLAN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ANT016008LCD2442MA1 information

TDK ANT016008LCD2442MA1 technical specifications, attributes, parameters and parts with similar specifications to TDK ANT016008LCD2442MA1.

Type
Parameter

Lifecycle Status
PRODUCTION (NOT RECOMMENDED FOR NEW DESIGN) (Last Updated: 2 months ago)

Factory Lead Time
24 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
0603

Packaging
Cut Tape (CT)

Published
2001

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Applications
WLAN

Construction
COMPONENT

Frequency
2.4GHz

Lead Pitch
250?m

Polarization
LINEAR

Impedance
50Ohm

Bandwidth
350MHz

Gain
2.27dBi, 5.18dBi

Frequency Range
2.4GHz~2.485GHz 5.15GHz~5.85GHz

RF/Microwave Device Type
ANTENNA-OTHER

RF Family/Standard
WiFi

Antenna Type
Chip

Number of Bands
2

Frequency Group
UHF 2GHz~3GHz SHF f > 4GHz

Frequency (Center/Band)
2.4GHz 5.5GHz

Omnidirectional
NO

Height
406.4?m

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TDK ANT016008LCD2442MA1.

ANT016008LCD2442MA1 Overview

RF Antennas can be generalized using Surface Mount.An enclosure of Cut Tape (CT) is used to package the RF modulator.As it has a Surface Mount, it's suitable for most RF ic designs.The RF ic comes in 0603 packaging, which makes it convenient to ship overseas.Based on test statistics, the RF Antennas's minimal operating temperature would be -40°C.A temperature above 85°C is not suitable for operation of the RF Antennas.
