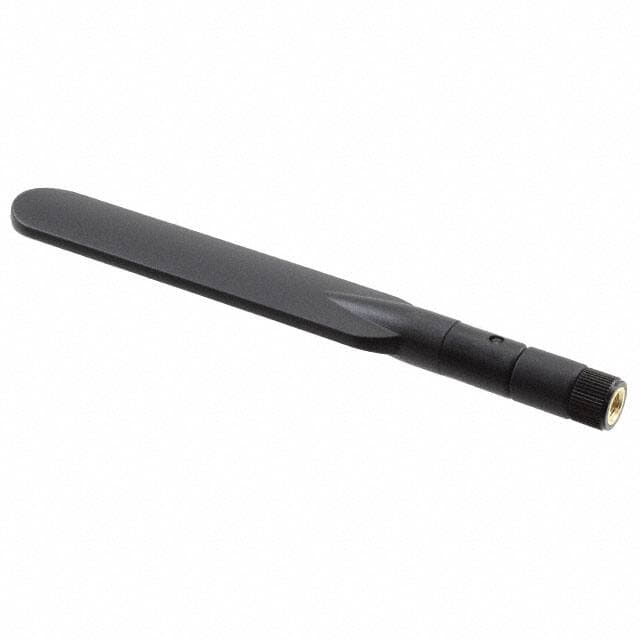

ATOP Technologies ANT-WD-A-RF-0305

Manufacturer No:

ANT-WD-A-RF-0305

Manufacturer:

ATOP Technologies

Package:

Description:

2 Bands Blade, Tilt UHF 2GHz~3GHz SHF f > 4GHz Connector Mount RP-SMA Female 2.4GHz 5GHz 5dBi Bulk Wi-Fi

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ANT-WD-A-RF-0305 information

ATOP Technologies ANT-WD-A-RF-0305 technical specifications, attributes, parameters and parts with similar specifications to ATOP Technologies ANT-WD-A-RF-0305.

Type
Parameter

Factory Lead Time
4 Weeks

Mounting Type
Connector Mount

Packaging
Bulk

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
RP-SMA Female

Applications
Wi-Fi

Gain
5dBi

RF Family/Standard
WiFi

Antenna Type
Blade, Tilt

Number of Bands
2

Frequency Group
UHF 2GHz~3GHz SHF f > 4GHz

Frequency (Center/Band)
2.4GHz 5GHz

Height
159.9946mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ATOP Technologies ANT-WD-A-RF-0305.

Datasheets:

atoptechnologies-hgc150an-datasheets-7598.pdf

ANT-WD-A-RF-0305 Overview

The Connector Mount makes it ideal for general RF Antennas.Packaged in solid enclosures, this RF modulator has a Bulk rating.

ANT-WD-A-RF-0305 Features

With Connector Mount

ANT-WD-A-RF-0305 Applications

There are a lot of ATOP Technologies
ANT-WD-A-RF-0305 RF Antennas applications.

Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo
