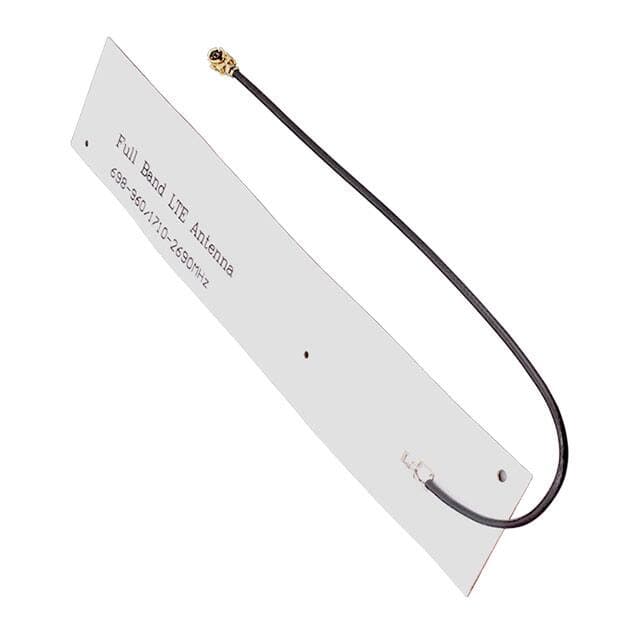

Linx Technologies Inc. ANT-LPL-FPC-100

Manufacturer No:

ANT-LPL-FPC-100

Manufacturer:

Package:

Description:

7 Bands Flat Patch Wide B Adhesive IPEX MHF1 (U.FL) 750MHz 876MHz 1.96GHz 2.35GHz 2.44GHz 2.59GHz 3.55GHz 5.6dBi, 6.5dBi, 4.9dBi, 5.2dBi, 5dBi, 5.3dBi, 2.9dBi 0.01 0.20mm General Purpose

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ANT-LPL-FPC-100 information

Linx Technologies Inc. ANT-LPL-FPC-100 technical specifications, attributes, parameters and parts with similar specifications to Linx Technologies Inc. ANT-LPL-FPC-100.

Type
Parameter

Factory Lead Time
12 Weeks

Mounting Type
Adhesive

Series
FPC

Feature
Cable - 100mm

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
IPEX MHF1 (U.FL)

Applications
General Purpose

Power - Max
2W

Gain
5.6dBi, 6.5dBi, 4.9dBi, 5.2dBi, 5dBi, 5.3dBi, 2.9dBi

Frequency Range
696MHz~960MHz 1.71GHz~2.2GHz 2.3GHz~2.4GHz 2.4GHz~2.485GHz 2.496GHz~2.69GHz 3.3GHz~3.8GHz

RF Family/Standard
Cellular, General ISM

Antenna Type
Flat Patch

VSWR
2.3, 2.4, 4.6, 1.4, 1.8, 3.5

Number of Bands
7

Frequency Group
Wide B

Frequency (Center/Band)
750MHz 876MHz 1.96GHz 2.35GHz 2.44GHz 2.59GHz 3.55GHz

Return Loss
-8.1dB, -7.7dB, -3.8dB, -15.6dB, -10.9dB, -5.1dB

Height (Max)
0.01 0.20mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Linx Technologies Inc. ANT-LPL-FPC-100.

Datasheets:

linxtechnologiesinc-antlplfpc100-datasheets-6971.pdf

linxtechnologiesinc-antlplfpc100-datasheets-6972.pdf

ANT-LPL-FPC-100 Overview

As it has a Adhesive value, it can be used for general RF Antennas.This is a Antenna RF from the FPC series.

ANT-LPL-FPC-100 Features

With Adhesive
FPC series

ANT-LPL-FPC-100 Applications

There are a lot of Linx Technologies Inc.
ANT-LPL-FPC-100 RF Antennas applications.

Rectifiers
Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
