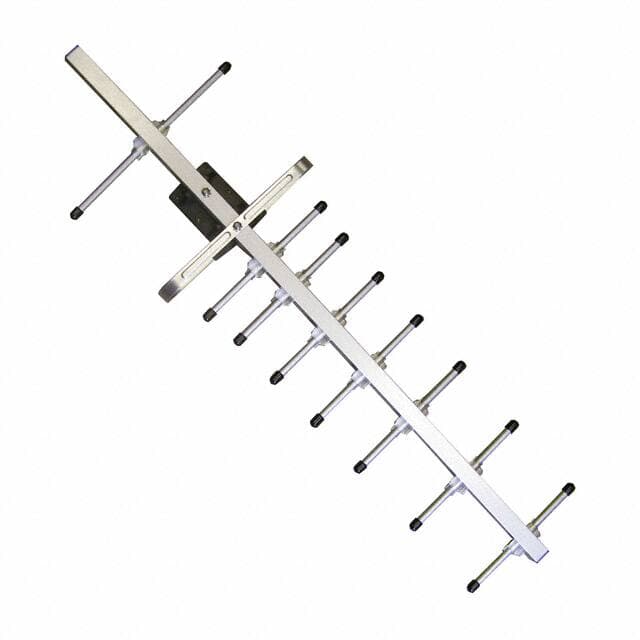

RF Solutions ANT-GSM-YAG11

Manufacturer No:

ANT-GSM-YAG11

Manufacturer:

RF Solutions

Package:

SMA

Description:

2 Bands Yagi, 8-Element UHF 300MHz~1GHz UHF 1GHz~2GHz Bracket Mount SMA Male 900MHz 1.8GHz 11dB Bulk GSM

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ANT-GSM-YAG11 information

RF Solutions ANT-GSM-YAG11 technical specifications, attributes, parameters and parts with similar specifications to RF Solutions ANT-GSM-YAG11.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Brackets

Mounting Type
Bracket Mount

Package / Case
SMA

Packaging
Bulk

Published
2010

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
SMA Male

Applications
GSM

Max Power Dissipation
60W

Frequency
1.8GHz

Lead Length
10m

Gain
11dB

RF Family/Standard
Cellular

Antenna Type
Yagi, 8-Element

VSWR
1.5

Number of Bands
2

Frequency Group
UHF 300MHz~1GHz UHF 1GHz~2GHz

Frequency (Center/Band)
900MHz 1.8GHz

Height
570.0014mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for RF Solutions ANT-GSM-YAG11.

Datasheets:

rfsolutions-antgsmyag11-datasheets-7685.pdf

ANT-GSM-YAG11 Overview

The Bracket Mount makes it ideal for general RF Antennas.Packaged in solid enclosures, this RF modulator has a Bulk rating.Having a Brackets makes it suitable for most RF ic designs.Shipping overseas is convenient due to the RF ic's packing in SMA.

ANT-GSM-YAG11 Features

With Bracket Mount

ANT-GSM-YAG11 Applications

There are a lot of RF Solutions
ANT-GSM-YAG11 RF Antennas applications.

Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo
